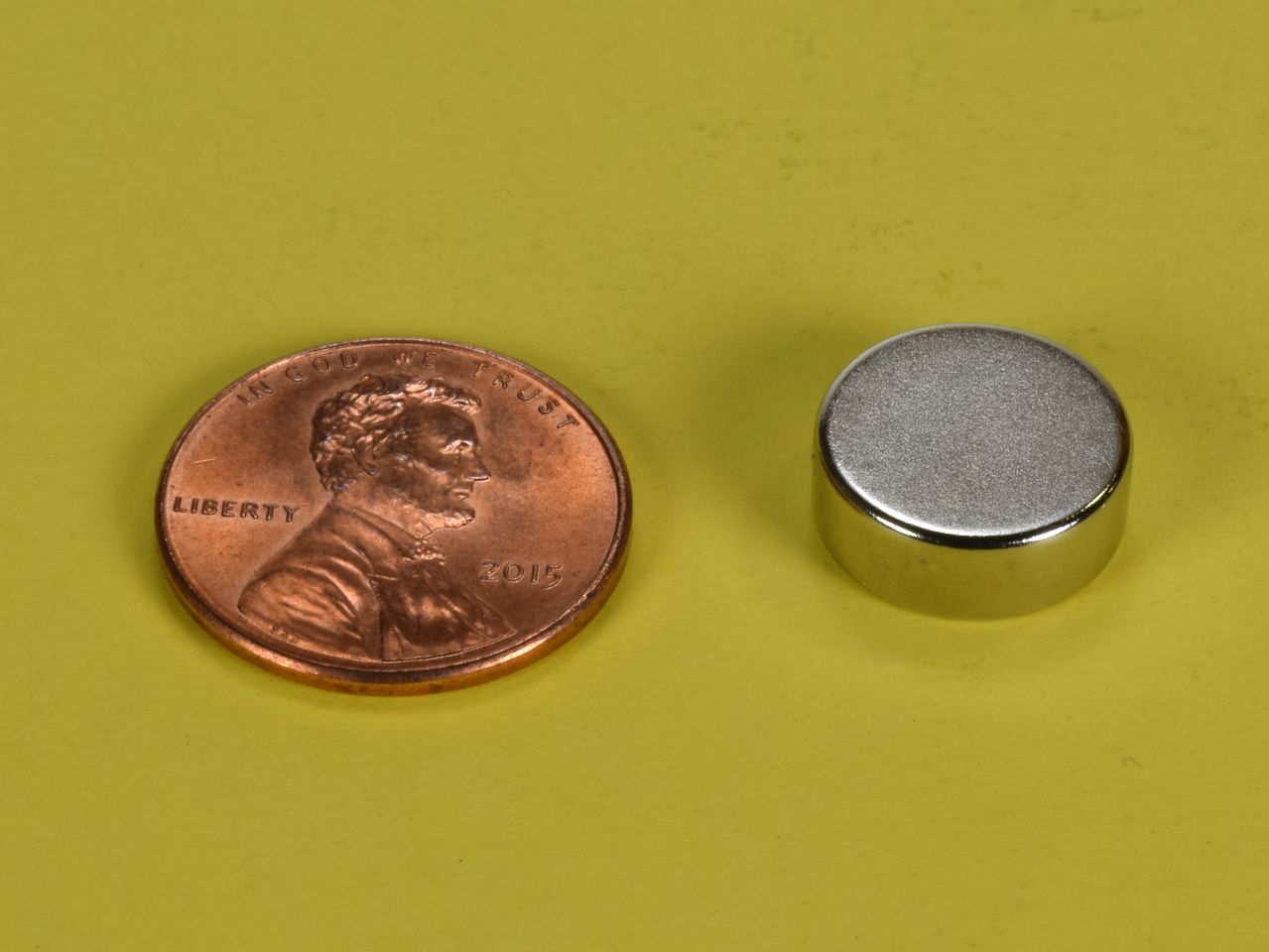

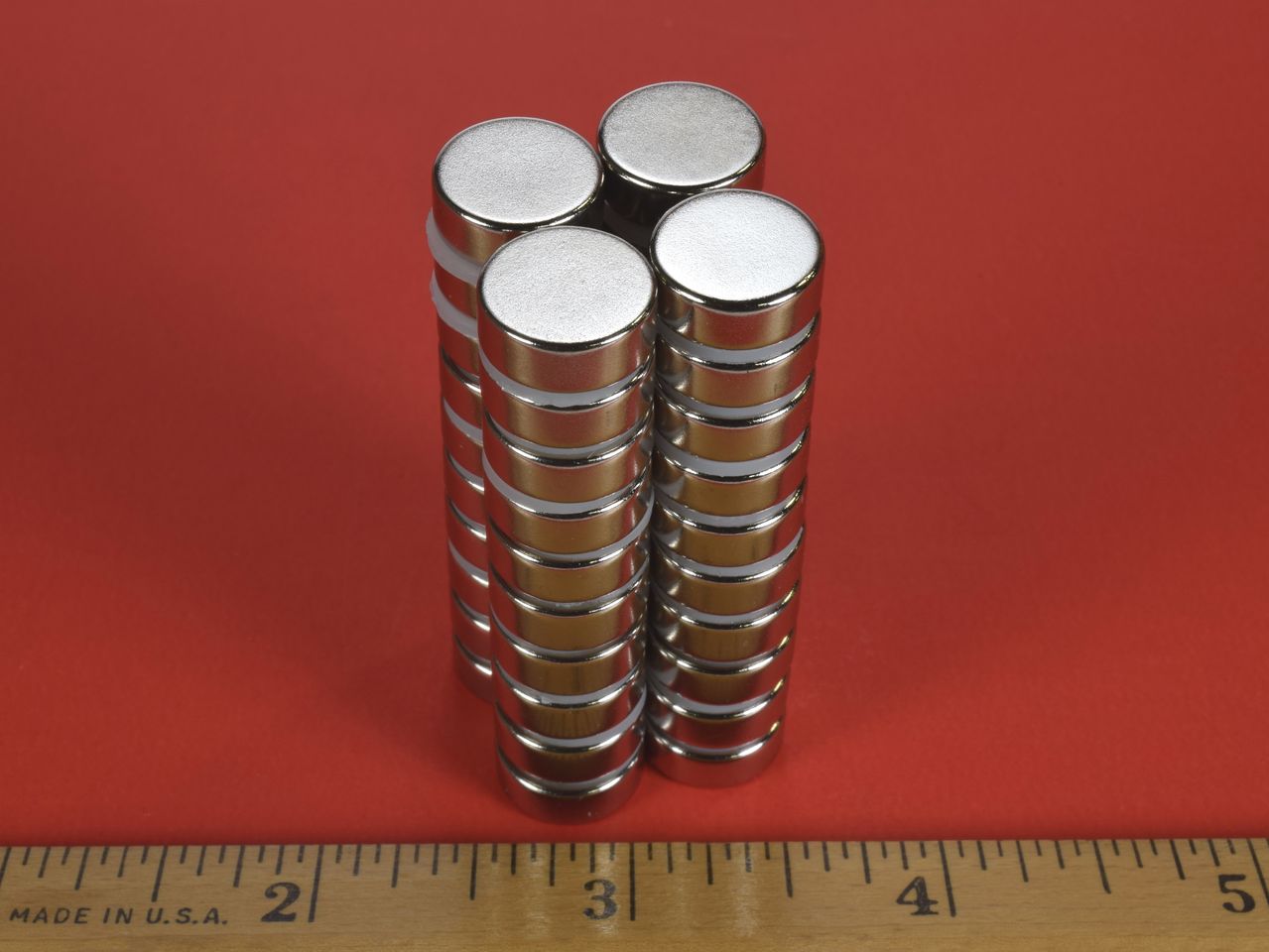

D83-N52 - Neodymium Disc Magnet - 1/2" Dia x 3/16" Thi

• Dimensions: 1/2" dia. x 3/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.160 oz. (4.53 g)
• Pull Force, Case 1: 11.32 lbs
• Pull Force, Case 2: 19.93 lbs
• Surface Field: 4440 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

The D83-N52 is a great general-purpose disc magnet. It is a strong, sturdy magnet that can be used in many applications.

This size is also available in grade N42 as part number D83.
