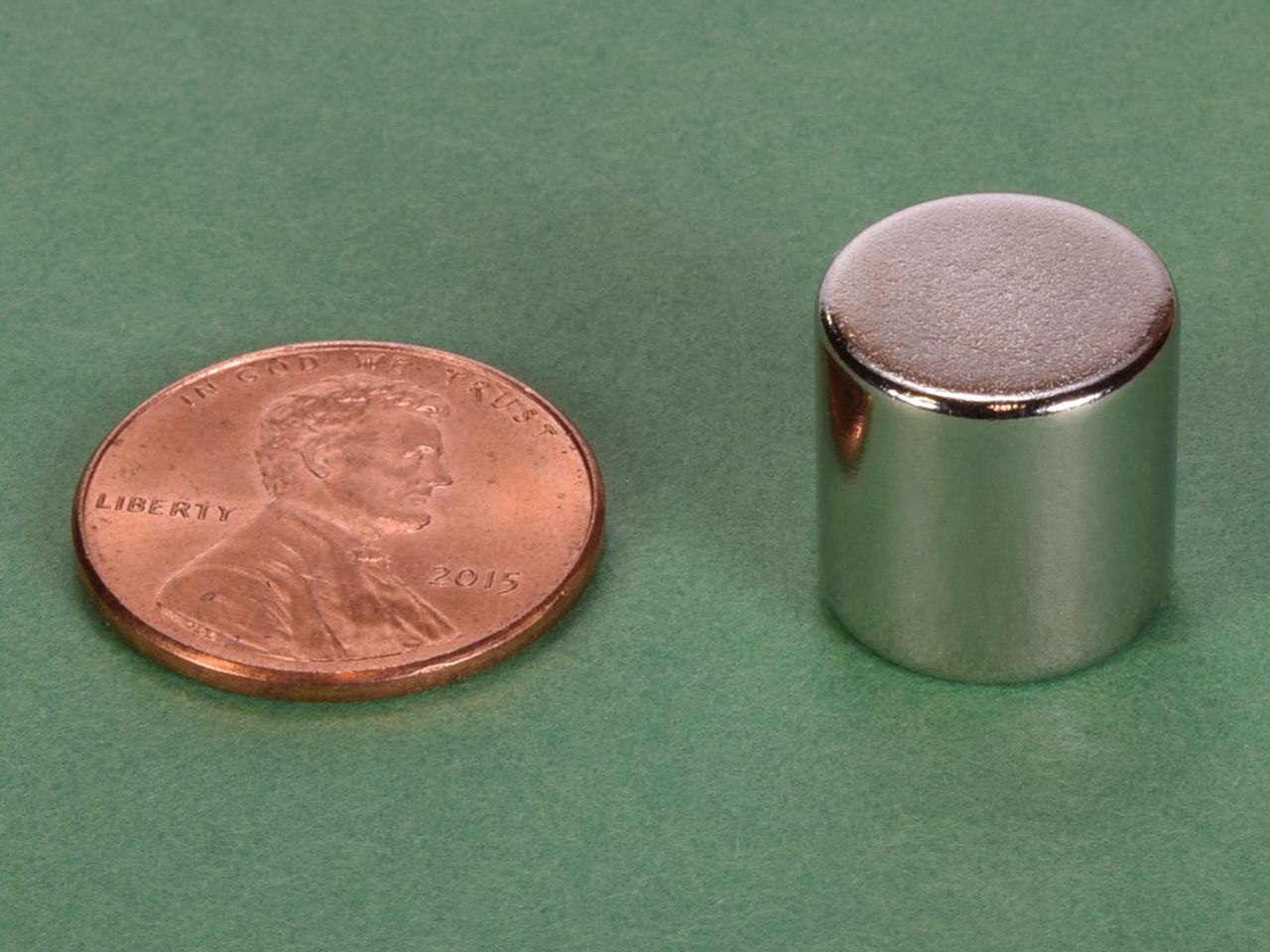

D88 | 1/2" Dia x 1/2" Thi | Neodymium Cylinder Magnet

Price ea.	Qty	Discount
$3.06	1-4
$2.99	5-9	2%
$2.92	10-24	5%
$2.86	25-49	7%
$2.79	50-99	9%
$2.72	100-249	11%
$2.65	250-499	13%
$2.59	500-999	15%
$2.52	1000-2499	18%
$2.45	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Dimensions: 1/2" dia. x 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.426 oz. (12.1 g)
Pull Force, Case 1: 14.60 lbs
Pull Force, Case 2: 16.40 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

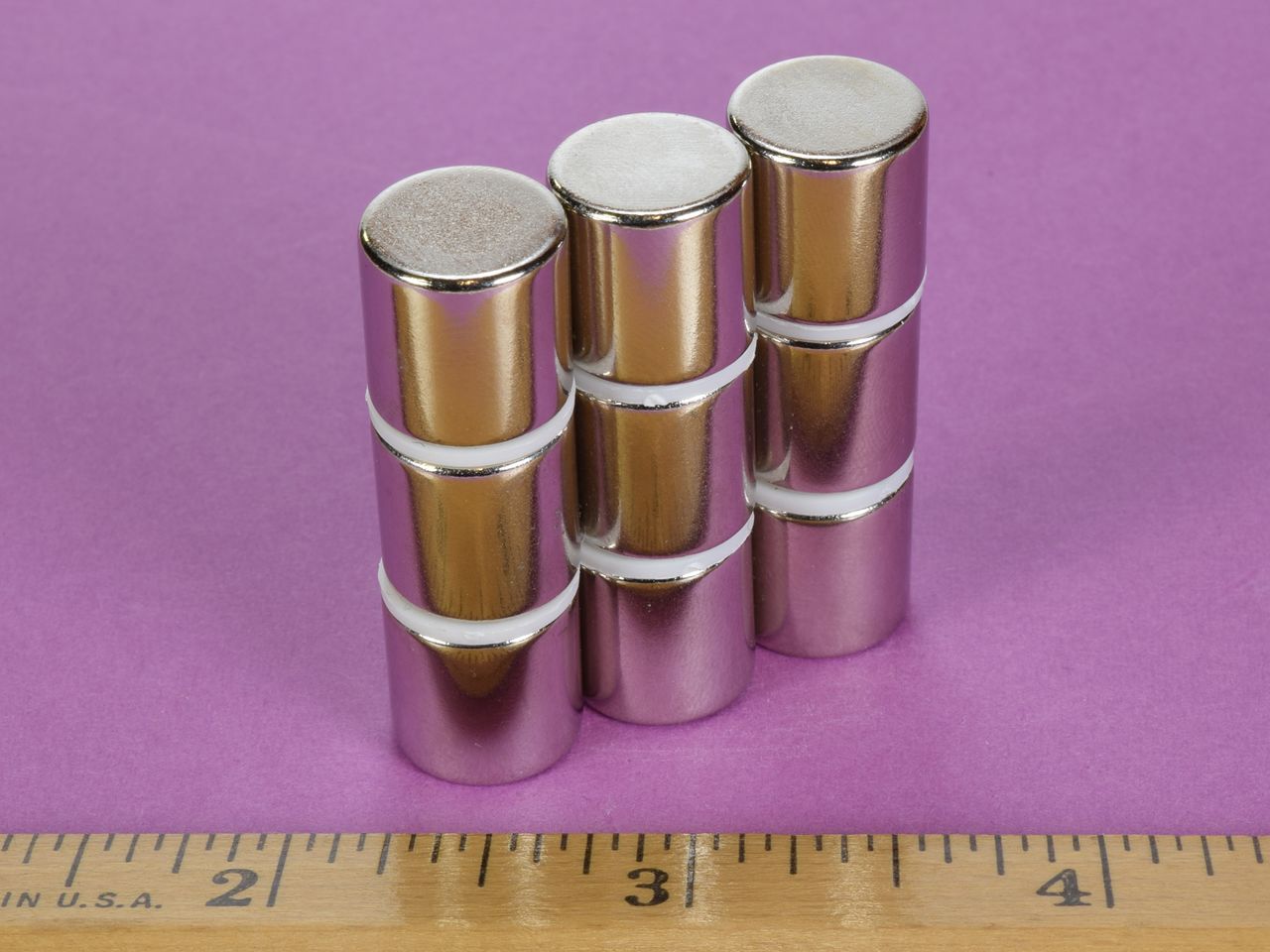

Our D88 cylinders are very powerful. They will definitely pinch if they are not handled carefully. They will chip if allowed to slam together because the magnets attract each other with such force. A great size for heavy holding.

This size is also available in grade N52 as part number D88-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).

D88 - Neodymium Cylinder Magnet - 1/2" Dia x 1/2" Thi
