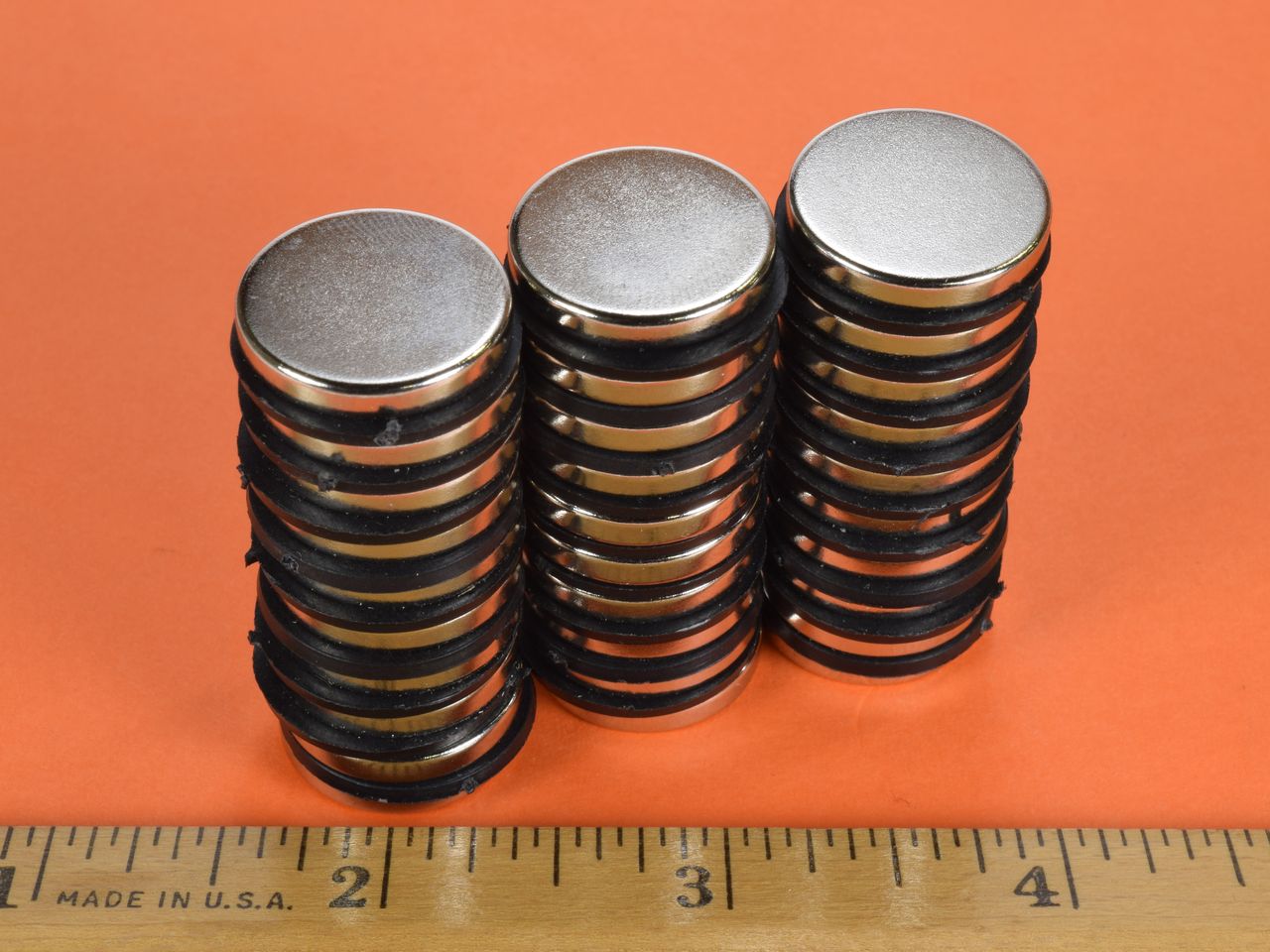

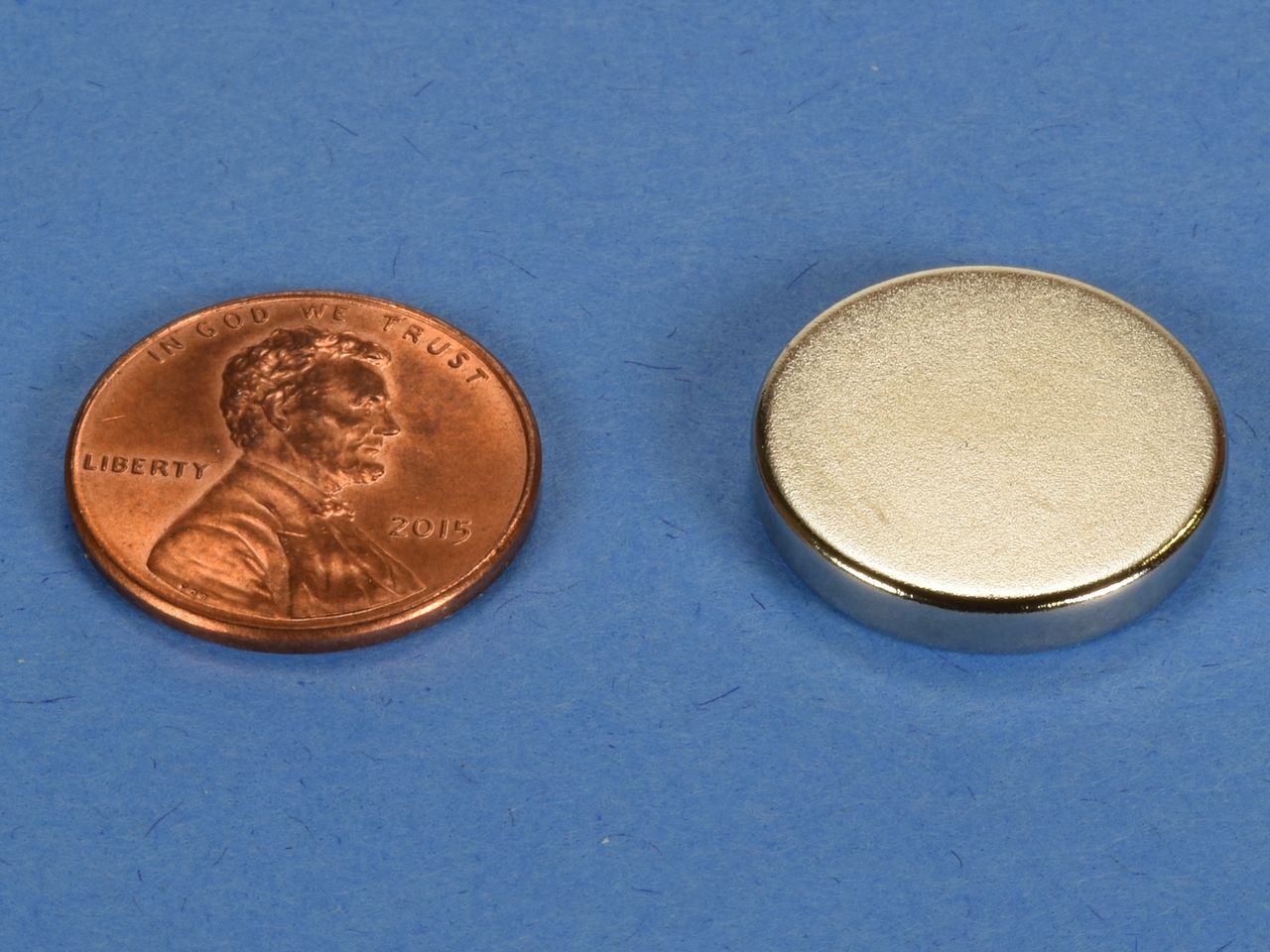

DC2-N52 - Neodymium Disc Magnet - 3/4" Dia x 1/8" Thi

• Dimensions: 3/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.239 oz. (6.79 g)
• Pull Force, Case 1: 12.08 lbs
• Pull Force, Case 2: 44.57 lbs
• Surface Field: 2340 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

This is a very powerful disc magnet in grade N52.

This size is also available in grade N42 as part number DC2 and in grade N42 with a Black Epoxy coating as part number DC2E.
