DE3 - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 7/8" dia. x 3/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.489 oz. (13.86g)
Pull Force, Case 1: 19.58 lbs
Pull Force, Case 2: 46.70 lbs
Surface Field: 2600 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

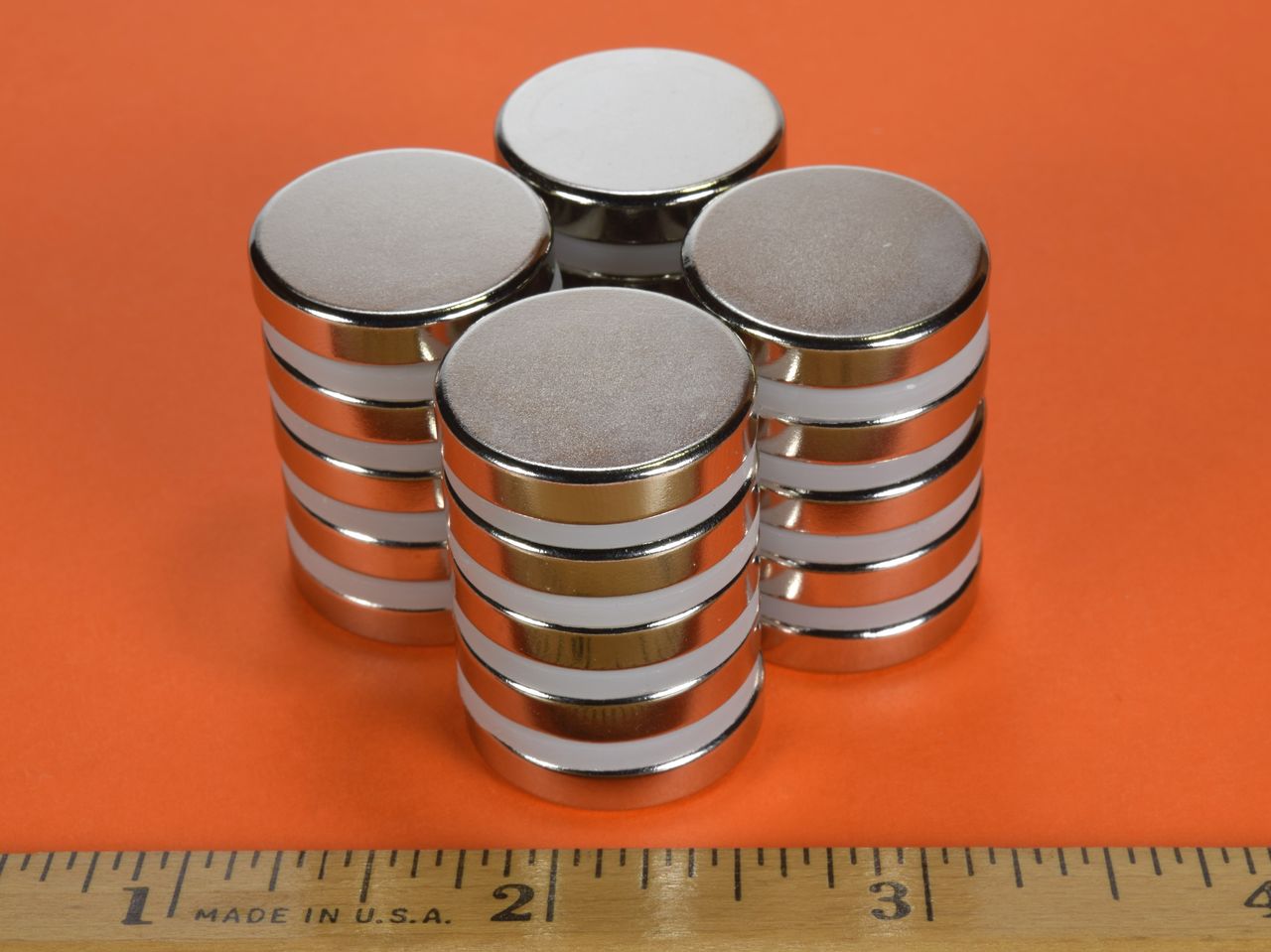

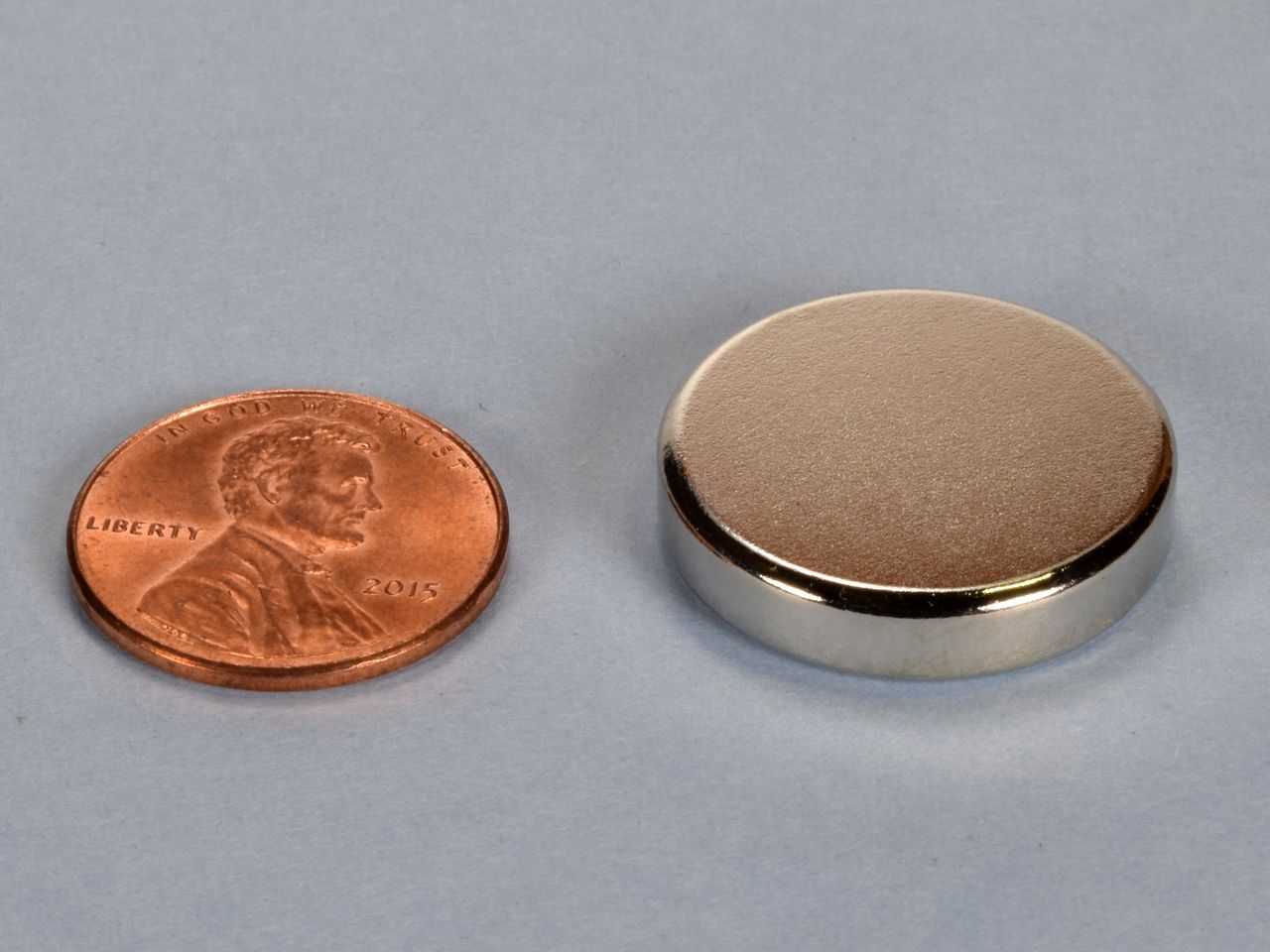

In our quest to offer as many different sizes and shapes of neodymium magnets as possible, here is another great, all-purpose, 7/8" disc magnet. Useful when a 3/4" disc just won't cut it and a 1" is just too big. Nickel plated NdFeB with the poles located on the large flat surfaces.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $3.58

Quantity:

Qty:

Price ea.	Qty
$3.58	1-4
$3.50	5-9
$3.42	10-24
$3.34	25-49
$3.26	50-99
$3.18	100-249
$3.10	250-499
$3.02	500-999
$2.94	1000-2499
$2.86	2500-4999
For pricing at higher order quantities, please email us!
