DX8C - Neodymium Disc Magnet

$34.11

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$34.11	1
$33.35	2	2%
$32.59	3-4	4%
$31.84	5-6	7%
$31.08	7-9	9%
$30.32	10-24	11%
$29.56	25-49	13%
$28.81	50-99	16%
$28.05	100-249	18%
$27.29	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

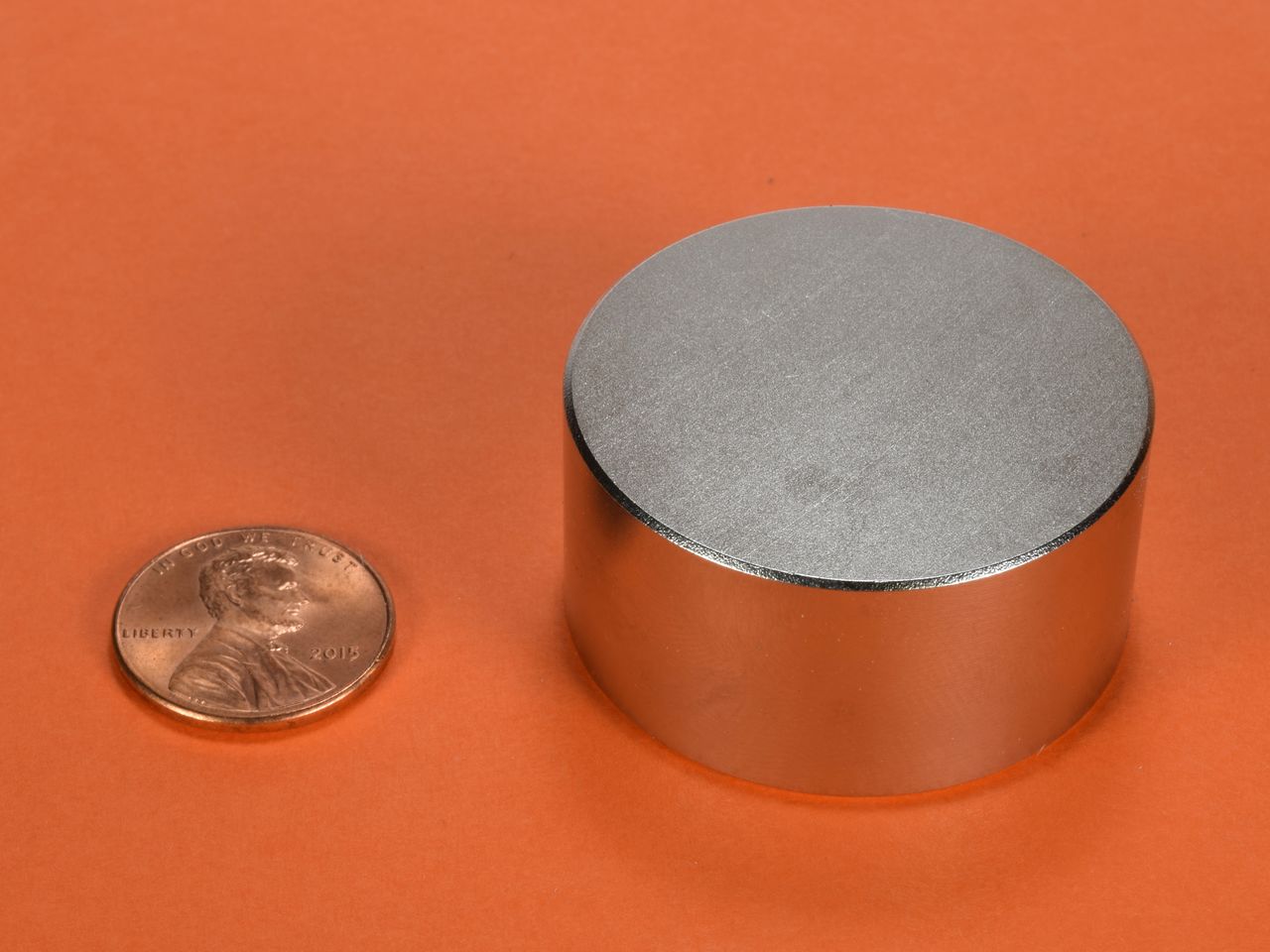

Dimensions: 1 1/2" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.75 oz. (163 g)
Pull Force, Case 1: 93.15 lbs
Pull Force, Case 2: 120.6 lbs
Surface Field: 4667 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

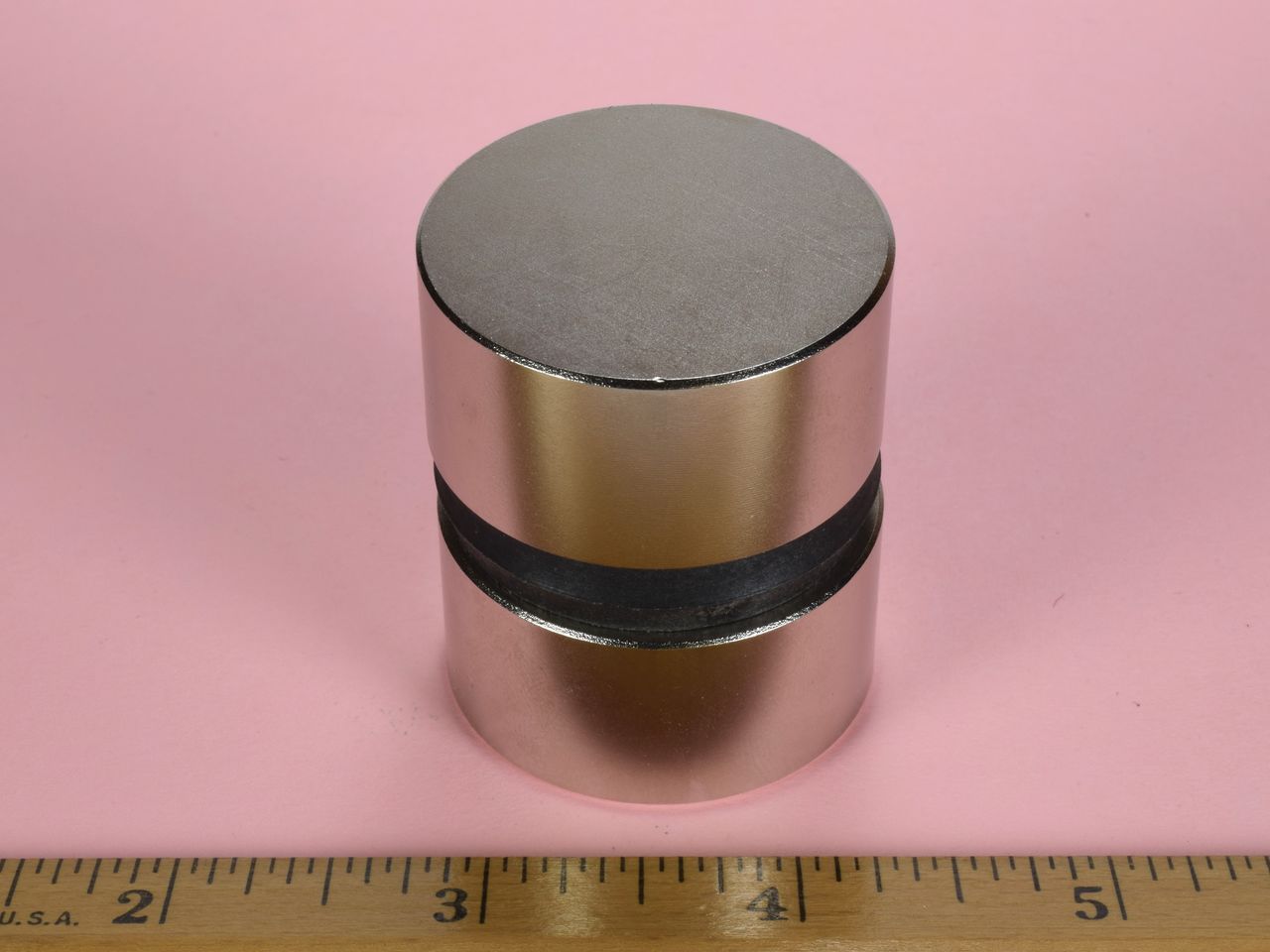

These large discs are crazy strong. Only purchase these discs if you know what you are doing and well versed in handling very powerful neodymium magnets. Two of these stuck together are virtually impossible to separate by hand. They can pinch quite hard and cause physical harm if they are not handled with extreme care and respect. One of these discs has a pull force of over 90 lbs if attached to a steel plate.

This size is also available in grade N52 as part number DX8C-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
