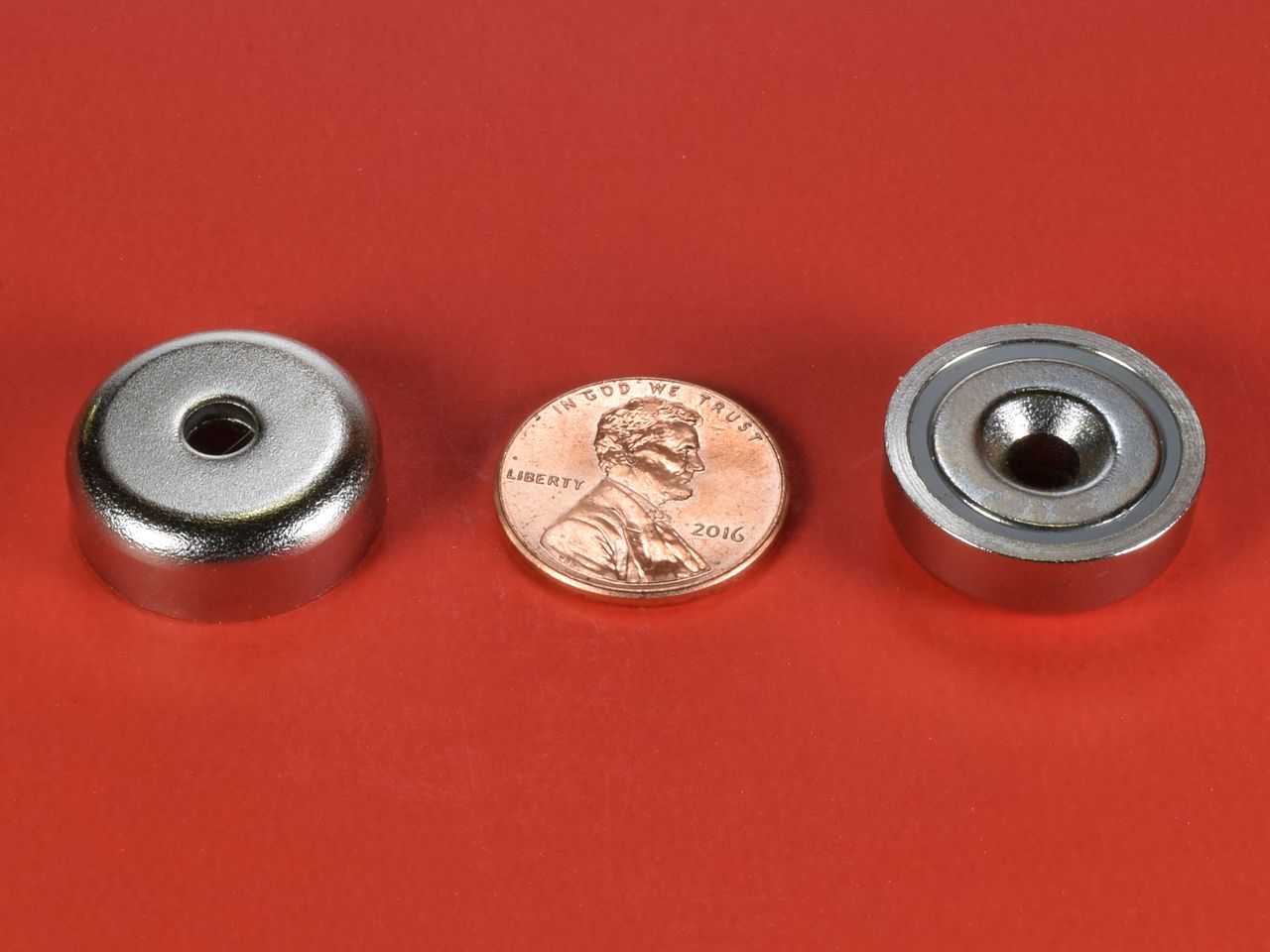

MM-A-20 - Neodymium Countersunk Mounting Magnet

mm-a-20-neodymium-countersunk-mounting-magnet--thumbnail-2

$2.94

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.94	1-4
$2.87	5-9	2%
$2.81	10-24	4%
$2.74	25-49	7%
$2.68	50-99	9%
$2.61	100-249	11%
$2.55	250-499	13%
$2.48	500-999	16%
$2.42	1000-2499	18%
$2.35	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

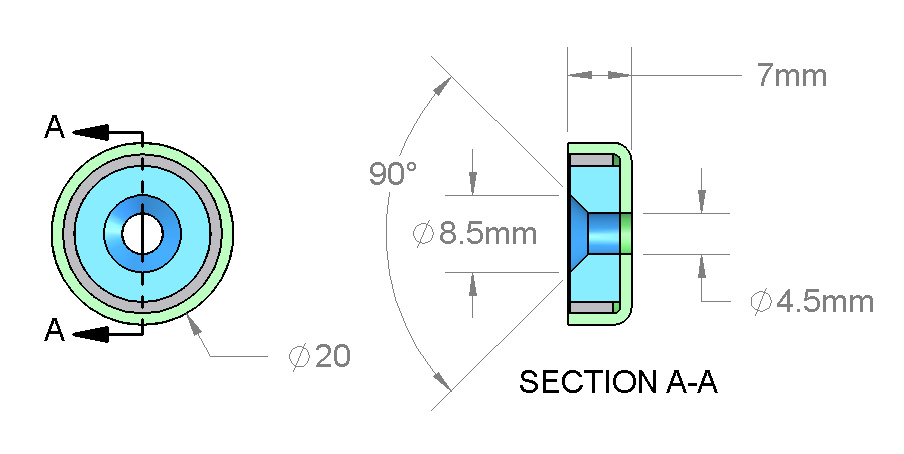

Dimensions:
D=20mm (0.79")
d1=4.5mm (0.18") (Sized for M4 screw)
d2=8.5mm (0.33") (Tapered countersunk hole)
h=7mm (0.28")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.47 oz. (13.3 g)
Pull Force: 16.20 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
