MM-A-32 - Neodymium Countersunk Mounting Magnet

mm-a-32-neodymium-countersunk-mounting-magnet--thumbnail-2

$6.17

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.17	1
$6.03	2-4	2%
$5.90	5-9	4%
$5.76	10-24	7%
$5.62	25-49	9%
$5.49	50-99	11%
$5.35	100-249	13%
$5.21	250-499	16%
$5.08	500-999	18%
$4.94	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

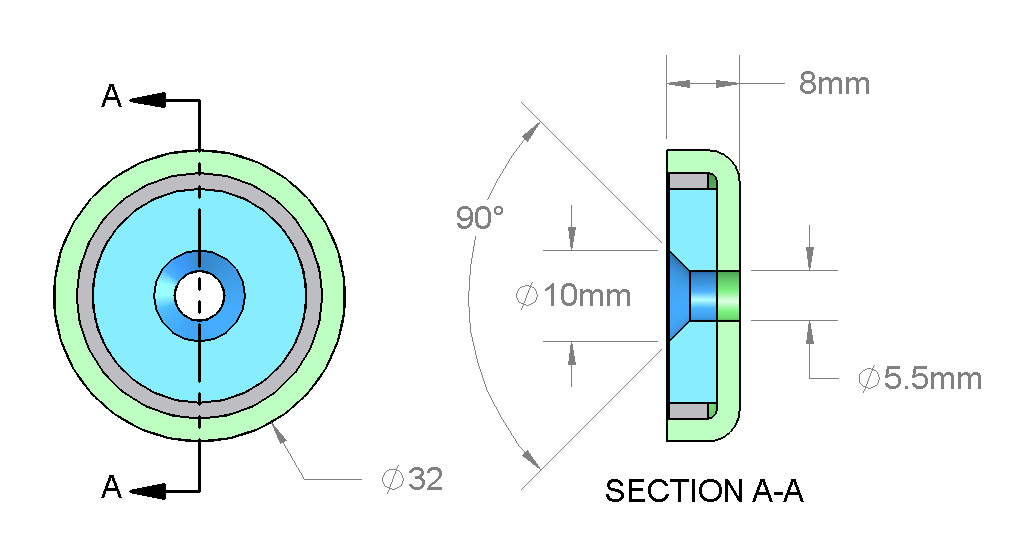

Dimensions:
    D=32mm (1.26")
    d1=5.5mm (0.22") (Sized for M5 screw)
    d2=10mm (0.39") (Tapered countersunk hole)
    h=8mm (0.32")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.41 oz. (40.0 g)
Pull Force: 55.1 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
