MM-B-60 - Neodymium Counterbored Mounting Magnet

mm-b-60-neodymium-counterbored-mounting-magnet--thumbnail-2

$34.74

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$34.74	1
$33.97	2	2%
$33.20	3-4	4%
$32.42	5-6	7%
$31.65	7-9	9%
$30.88	10-24	11%
$30.11	25-49	13%
$29.33	50-99	16%
$28.56	100-249	18%
$27.79	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

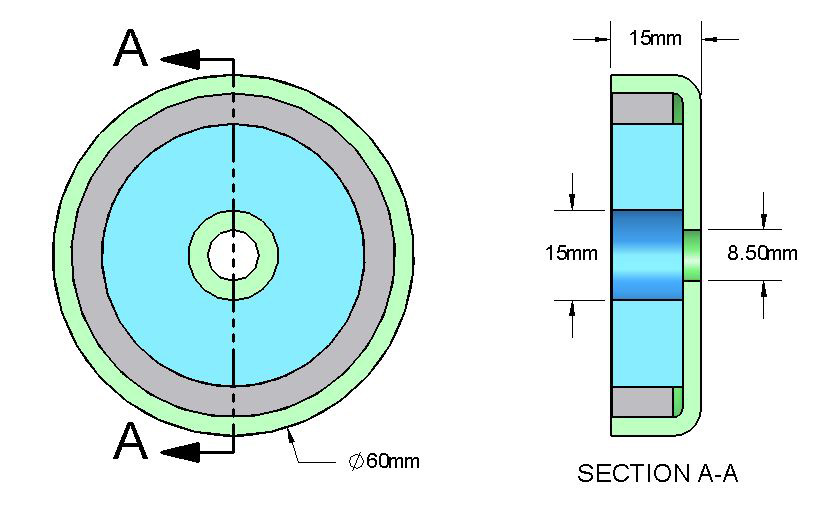

Dimensions:
    D=60mm (2.36")
    d1=8.5mm (0.33") (Sized for M8 screw)
    d2=16.5mm (0.65") (Straight counterbored hole)
    h=15mm (0.59")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 8.50 oz. (241 g)
Pull Force: 209.4 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

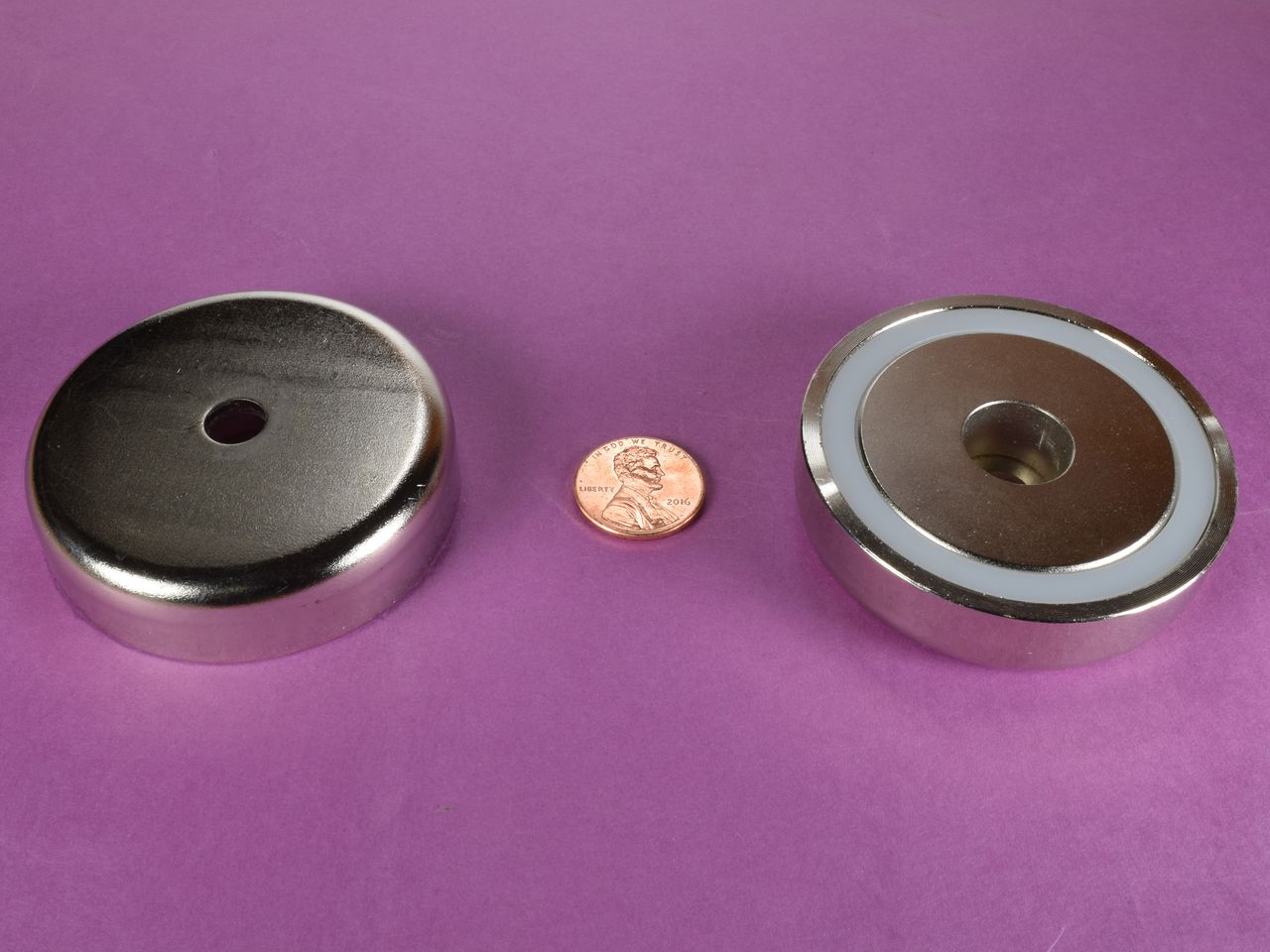

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
