MMS-A-X4 - Countersunk Mounting Magnet

Description
Technical
Downloads

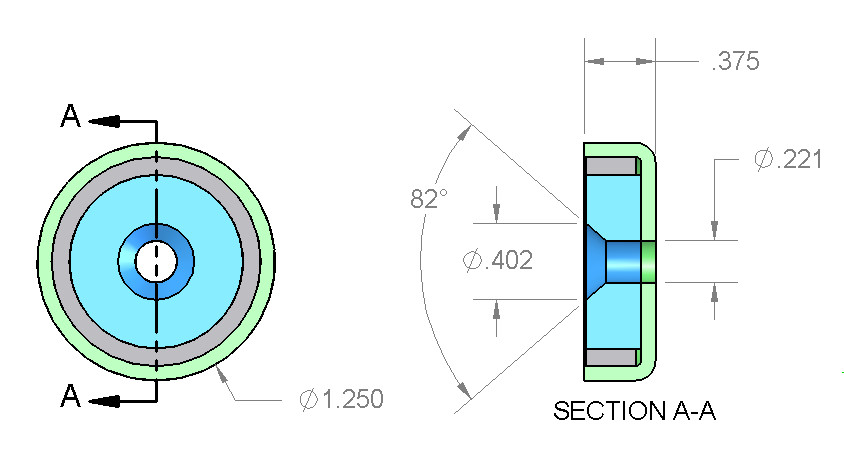

Dimensions:
    Diameter= 1 1/4" (1.25")
    Hole Size= #10 Screw
    Height= 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.63 oz. (46.26 g)
Pull Force: 58.27 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

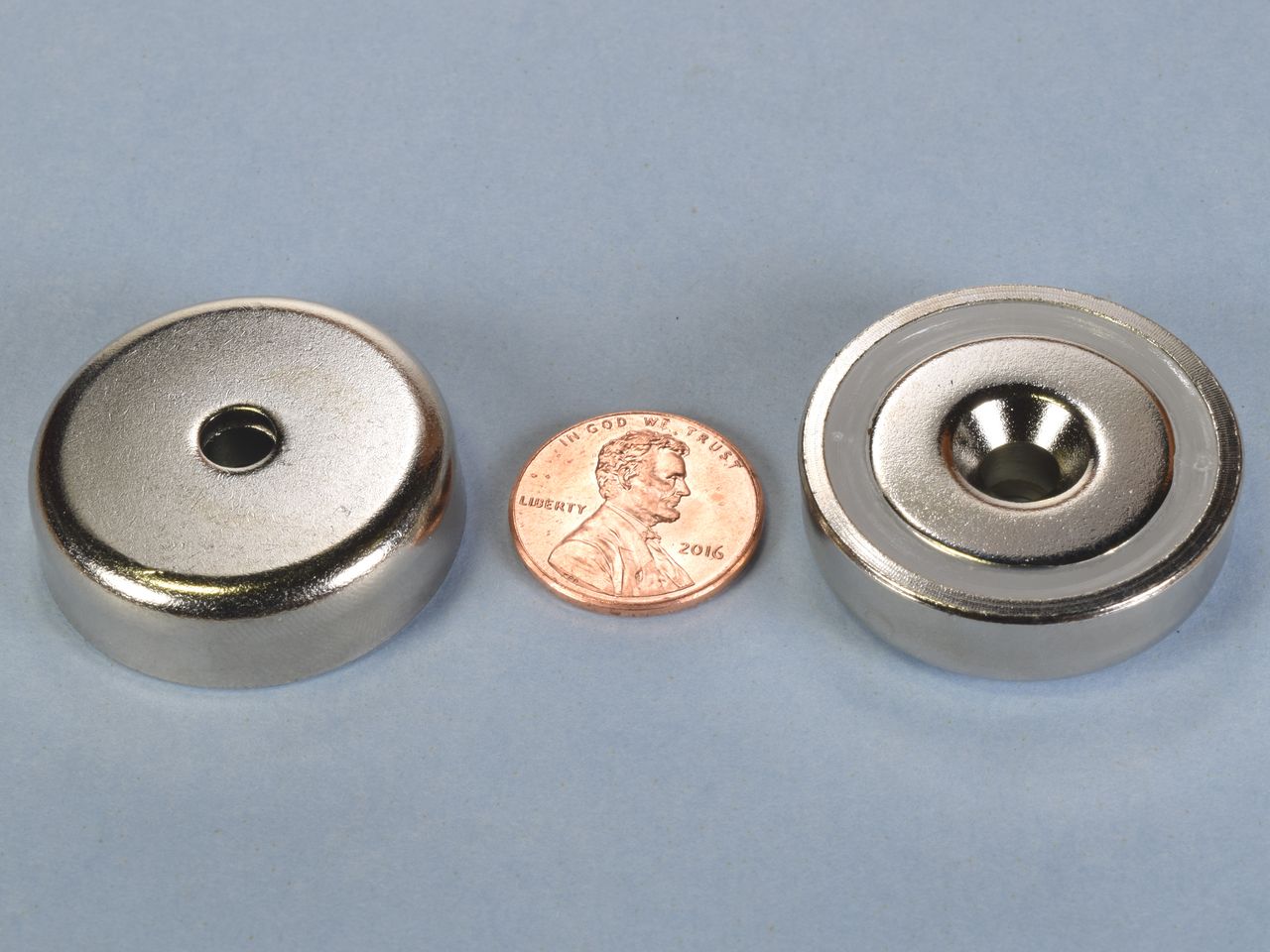

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $6.08

Quantity:

Qty:

Price ea.	Qty
$6.08	1
$5.94	2-4
$5.81	5-9
$5.67	10-24
$5.54	25-49
$5.40	50-99
$5.27	100-249
$5.13	250-499
$5.00	500-999
$4.86	1000-2499
For pricing at higher order quantities, please email us!
