MMS-B-XC - Counterbored Mounting Magnet

Description
Technical
Downloads

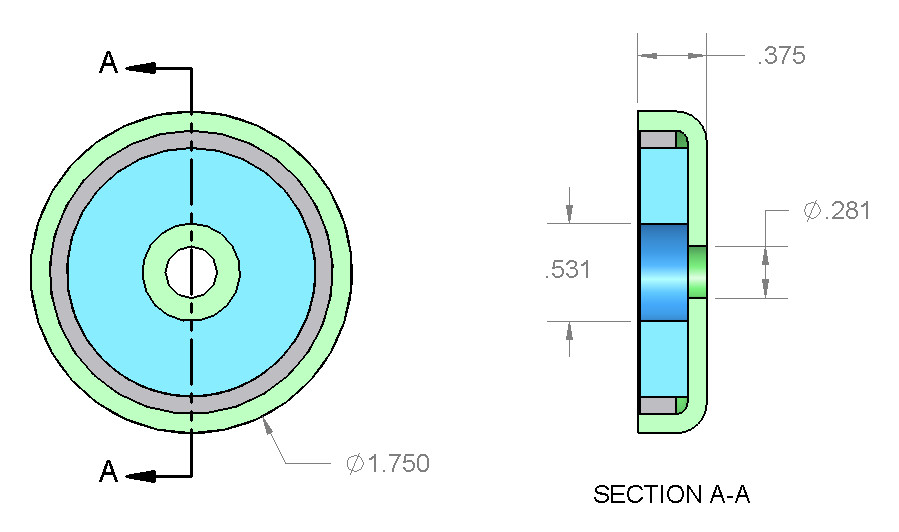

Dimensions:
    Diameter = 1 3/4" (1.75")
    Hole Size = 1/4" Screw
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 3.269 oz. (92.69 g)
Pull Force: 117.3 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

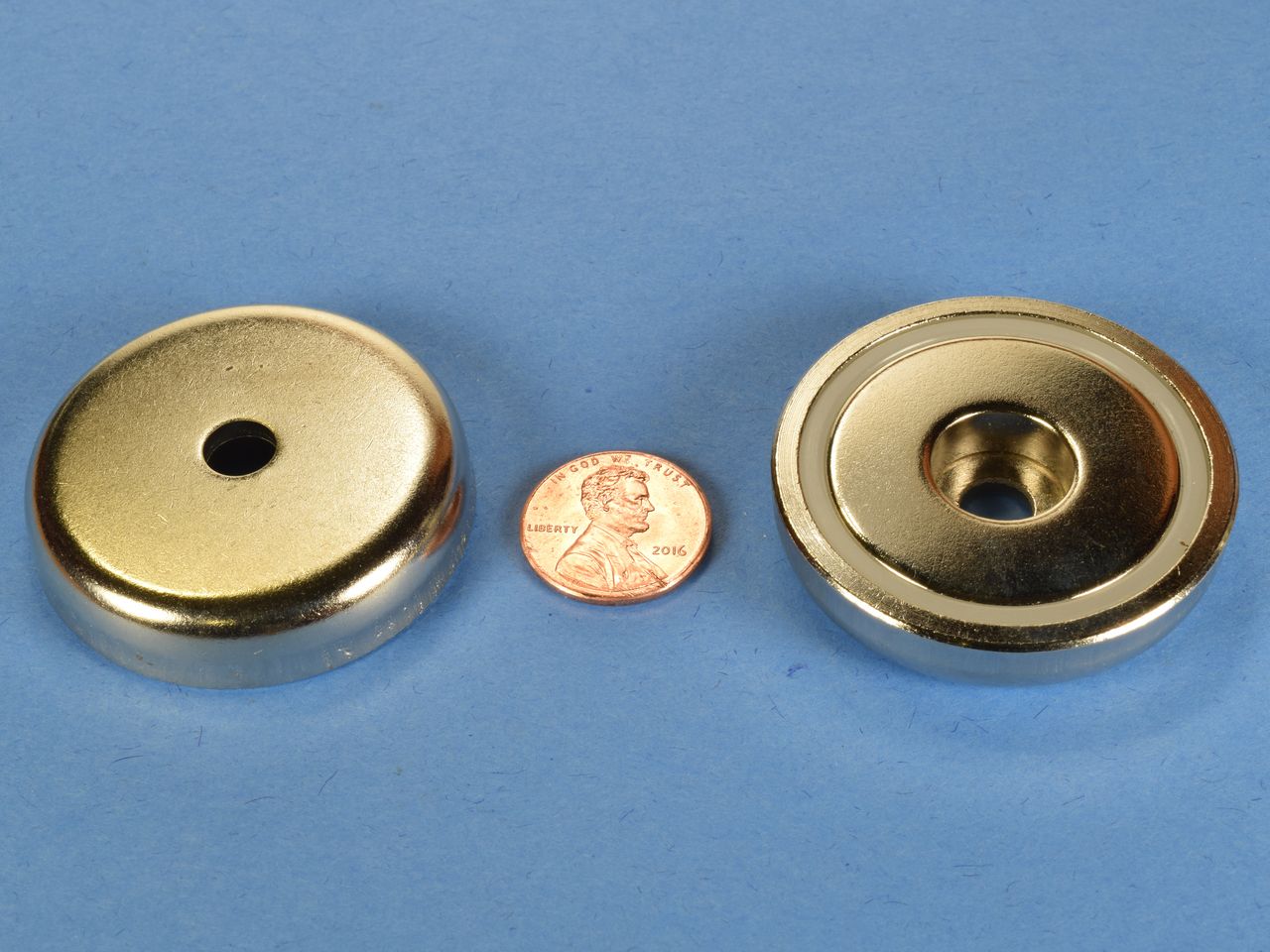

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $13.32

Quantity:

Qty:

Price ea.	Qty
$13.32	1
$13.02	2
$12.73	3-4
$12.43	5-9
$12.14	10-24
$11.84	25-49
$11.55	50-99
$11.25	100-249
$10.96	250-499
$10.66	500-999
For pricing at higher order quantities, please email us!
