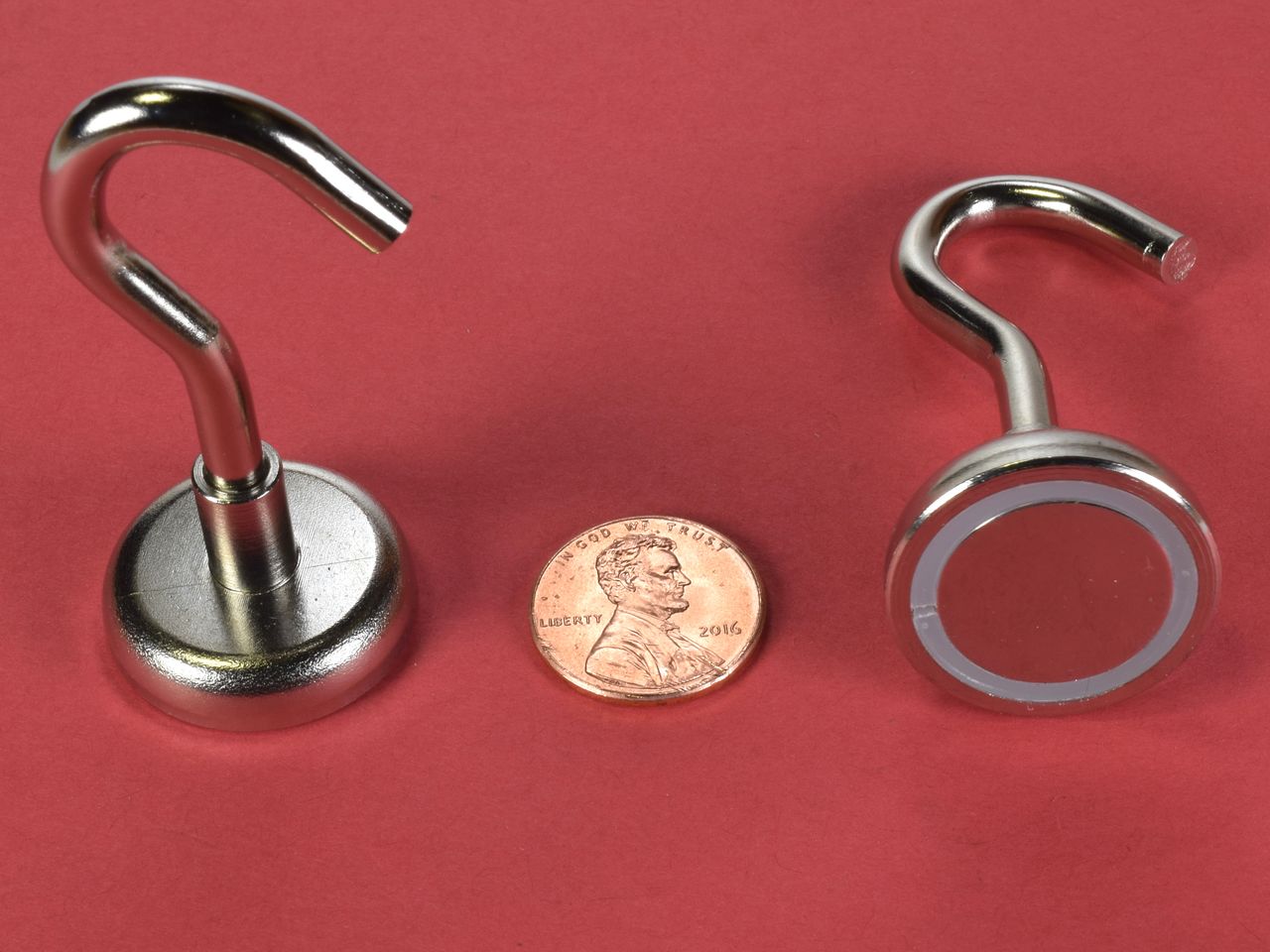

MMS-E-X0 - Neodymium Open Hook Mounting Magnet

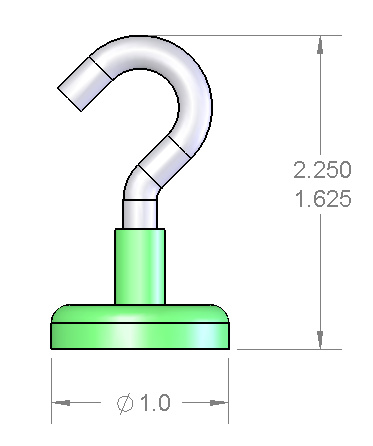

• Dimensions:
      Diameter = 1" (1.00")
      Height = 2 1/8" (2.125")
      Hook Attachment = #8-32 Threaded Open Hook
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.13 oz. (32.03 g)
• Pull Force: 40.64 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Here we offer one of the most useful magnets known to man - an incredibly powerful magnet with a hook attached. Need to hang something in or on your locker? fridge? filing cabinet? This is what you need. If you've ever fought to position a drop light while you were working on a car, or anything for that matter, you understand how valuable one of these hooks could be for unrestricted light placement. The possible uses for these great hook magnets are unlimited! The hook, magnet and mount are all nickel plated to resist corrosion and to provide that nice shiny, silver finish.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
