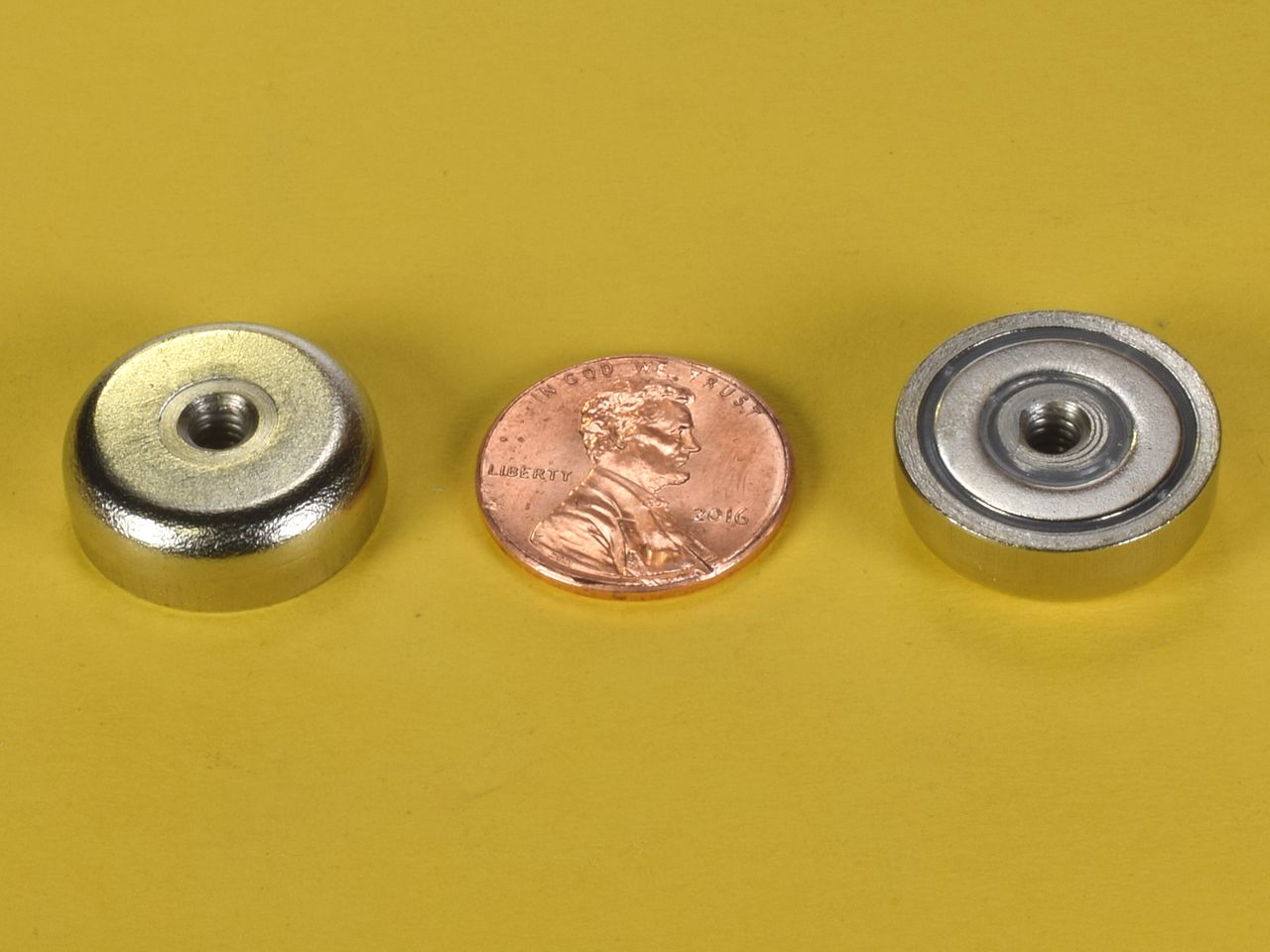

MMS-H-C - Neodymium Internal Thread Mounting Magnet

mms-h-c-neodymium-internal-thread-mounting-magnet

mms-h-c-neodymium-internal-thread-mounting-magnet--thumbnail-1

mms-h-c-neodymium-internal-thread-mounting-magnet--thumbnail-2

$3.37

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.37	1-4
$3.29	5-9	2%
$3.22	10-24	4%
$3.14	25-49	7%
$3.07	50-99	9%
$2.99	100-249	11%
$2.92	250-499	13%
$2.84	500-999	16%
$2.77	1000-2499	18%
$2.69	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

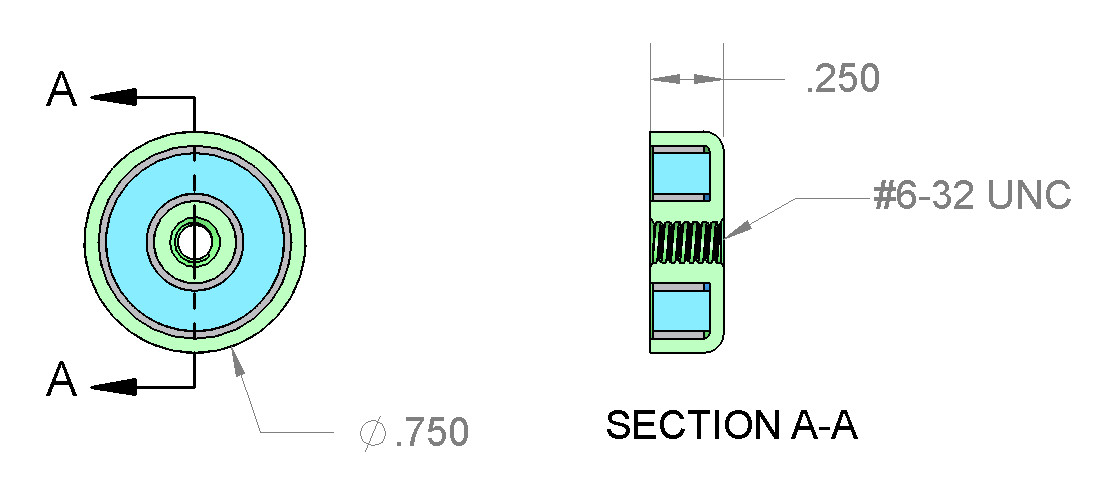

Dimensions:
    Diameter = 3/4" (0.750")
    Internal Thread Size = #6-32 UNC 2B
    Height = 1/4" (0.250")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.418 oz. (11.84 g)
Pull Force: 17.09 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
