MMS-A-C - Neodymium Countersunk Mounting Magnet

$2.77

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.77	1-4
$2.71	5-9	2%
$2.65	10-24	4%
$2.58	25-49	7%
$2.52	50-99	9%
$2.46	100-249	11%
$2.40	250-499	13%
$2.33	500-999	16%
$2.27	1000-2499	18%
$2.21	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

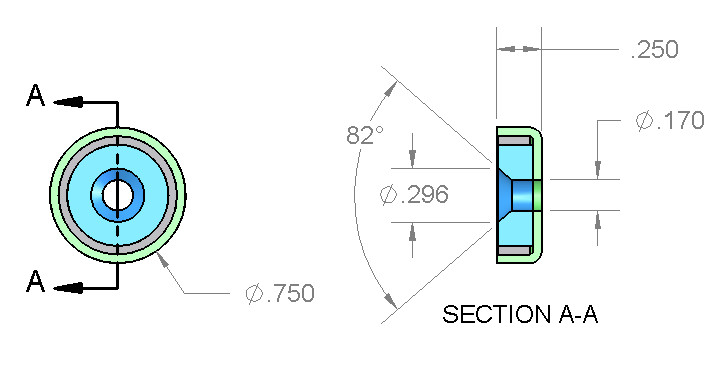

Dimensions:
    Diameter= 3/4" (0.75")
    Hole Size= #6 Screw
    Height= 1/4" (0.25")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.374 oz. (10.61g)
Pull Force: 19.71 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

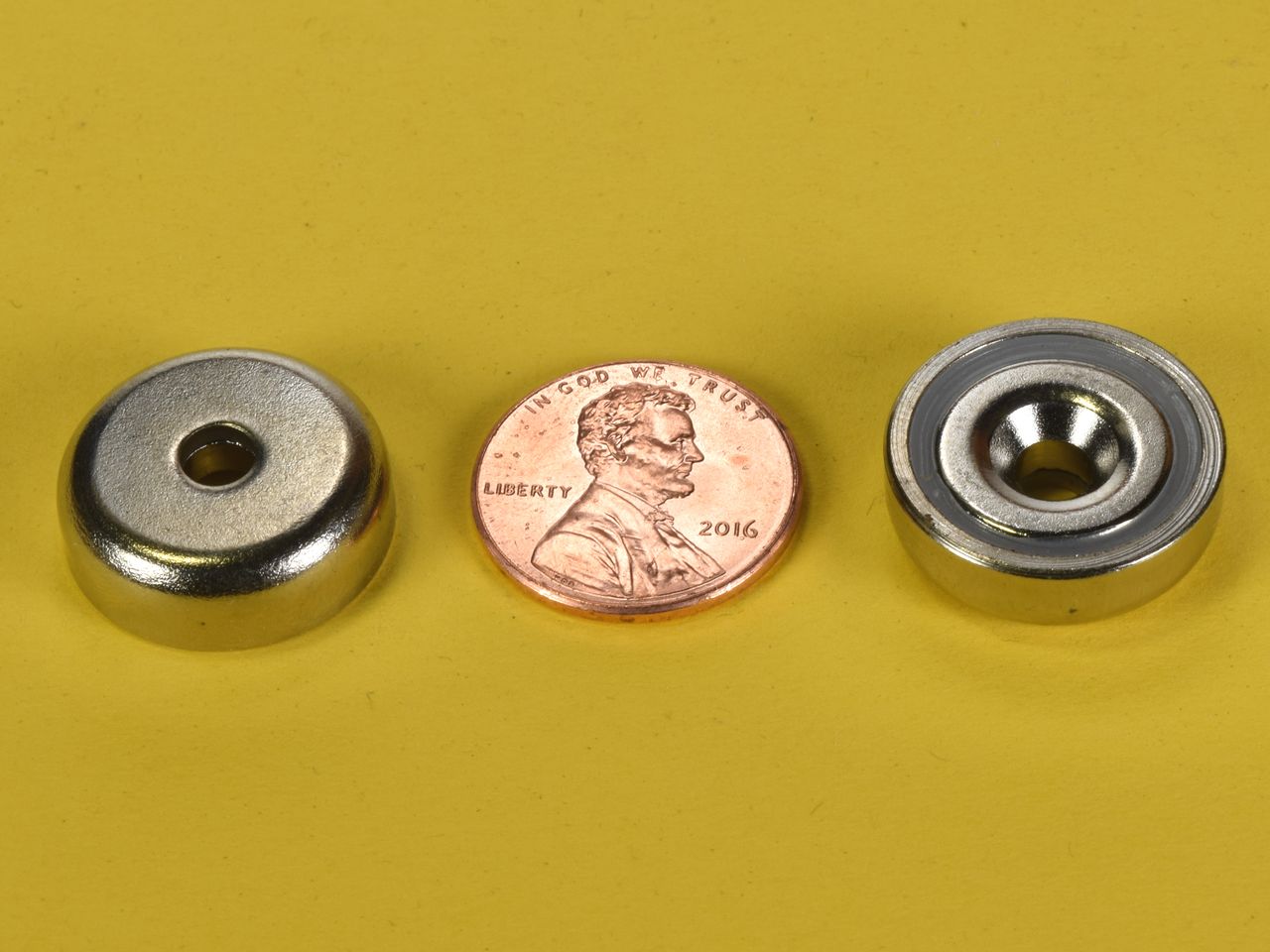

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
