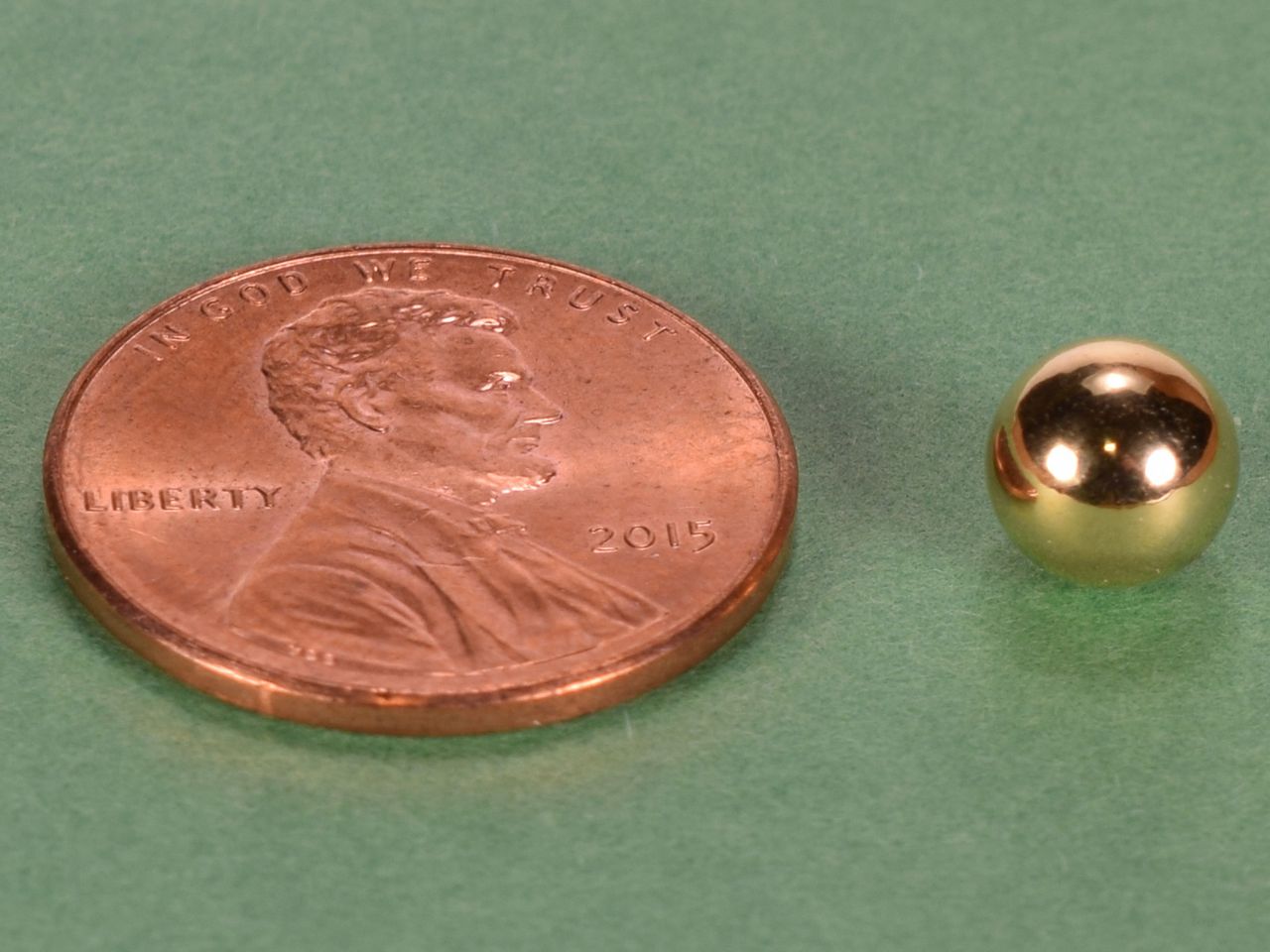

S4G - Neodymium Gold Plated Sphere Magnet

• Dimensions: 1/4" diameter
• Tolerances: ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni-Au (Gold)
• Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
• Weight: 0.035 oz (1.01 g)
• Pull Force, Case 1: 1.63 lbs
• Pull Force, Case 2: 1.96 lbs
• Surface Field: 8815 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

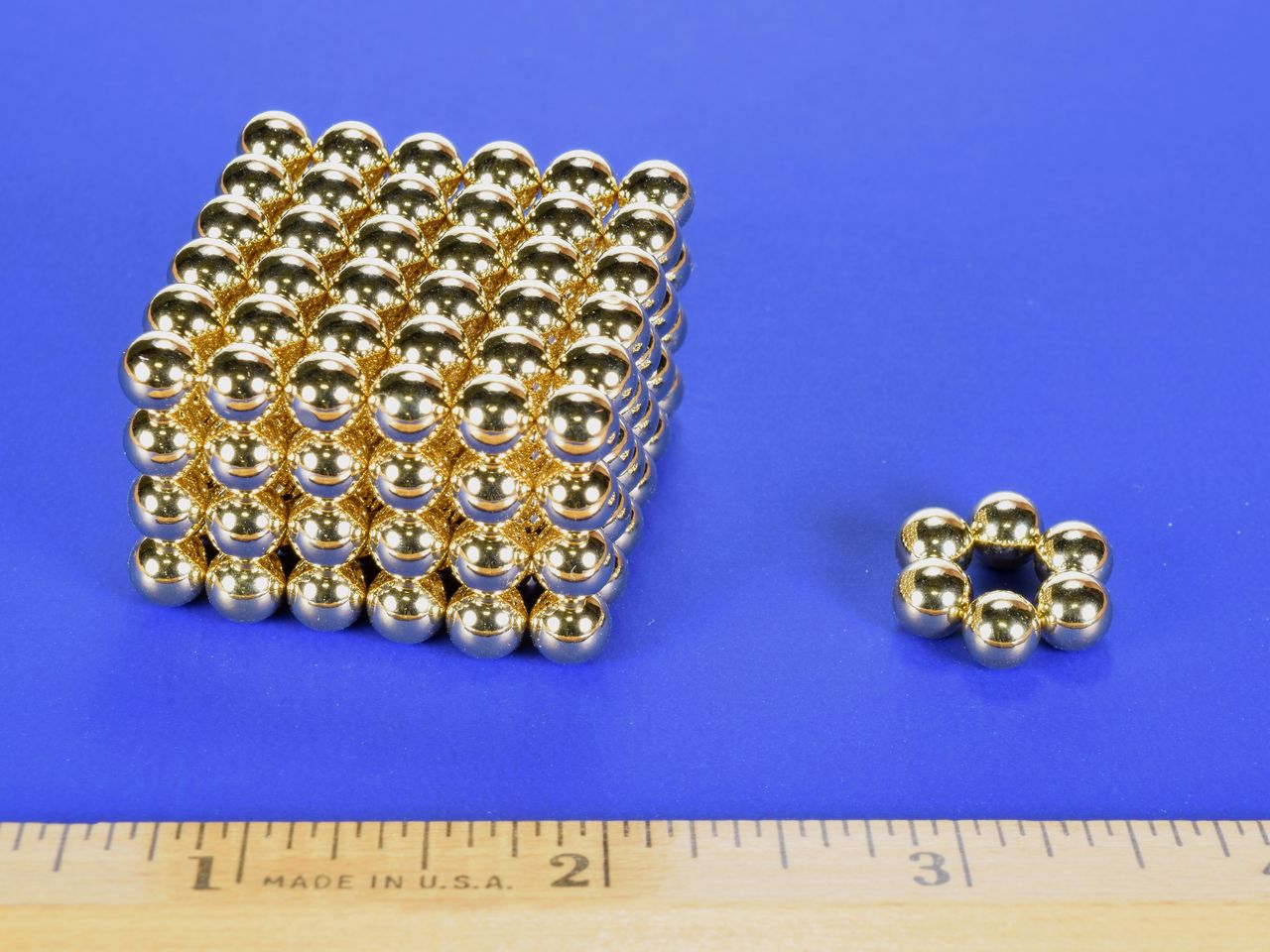

These are exactly the same as our S4 and S4B spheres except that they are plated with gold. They can be used alone, or combined with our standard silver colored S4 or black S4B spheres and other shapes.



	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
