![Magnetization direction](/images/magdir/sphere.png)

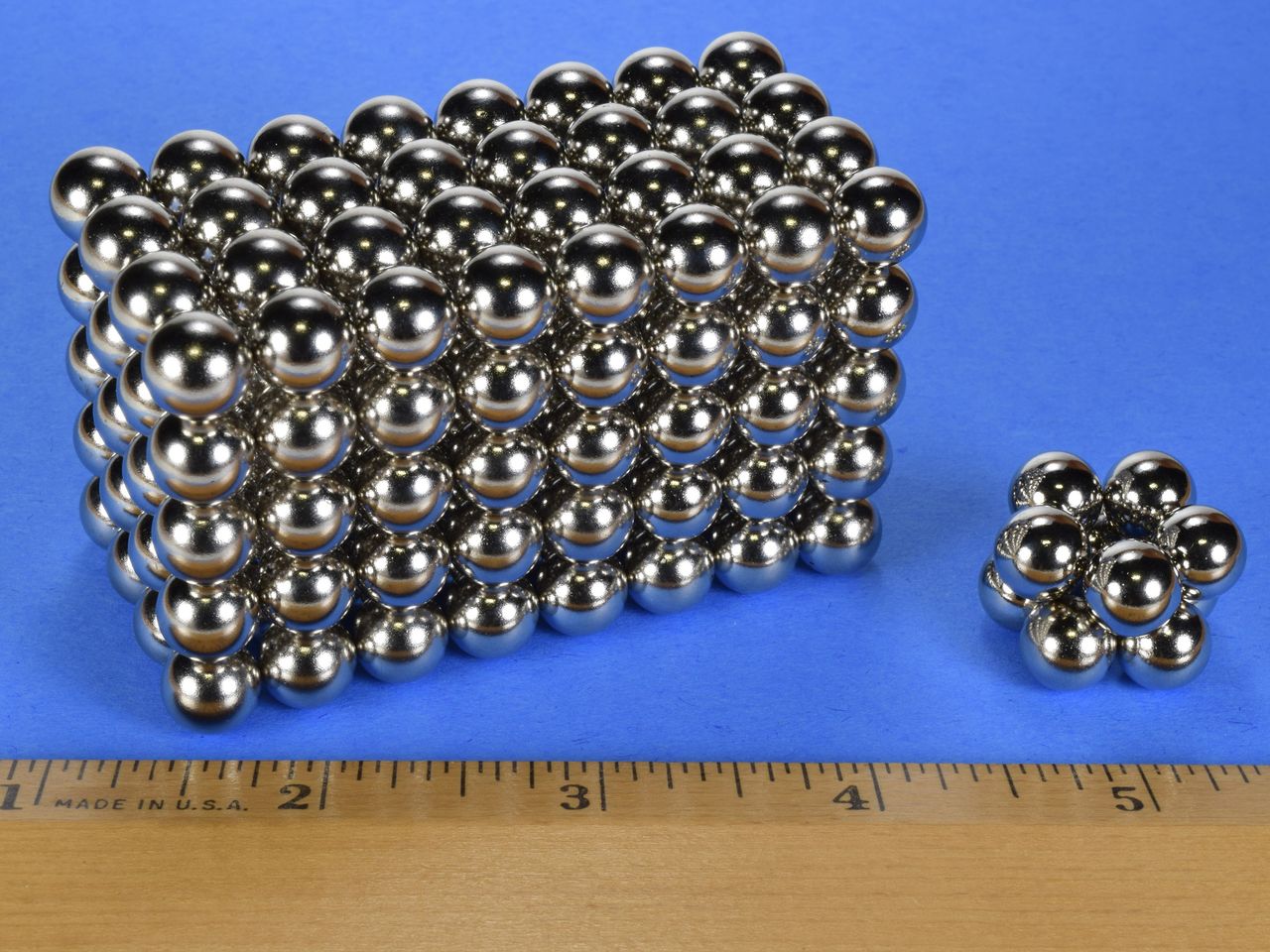

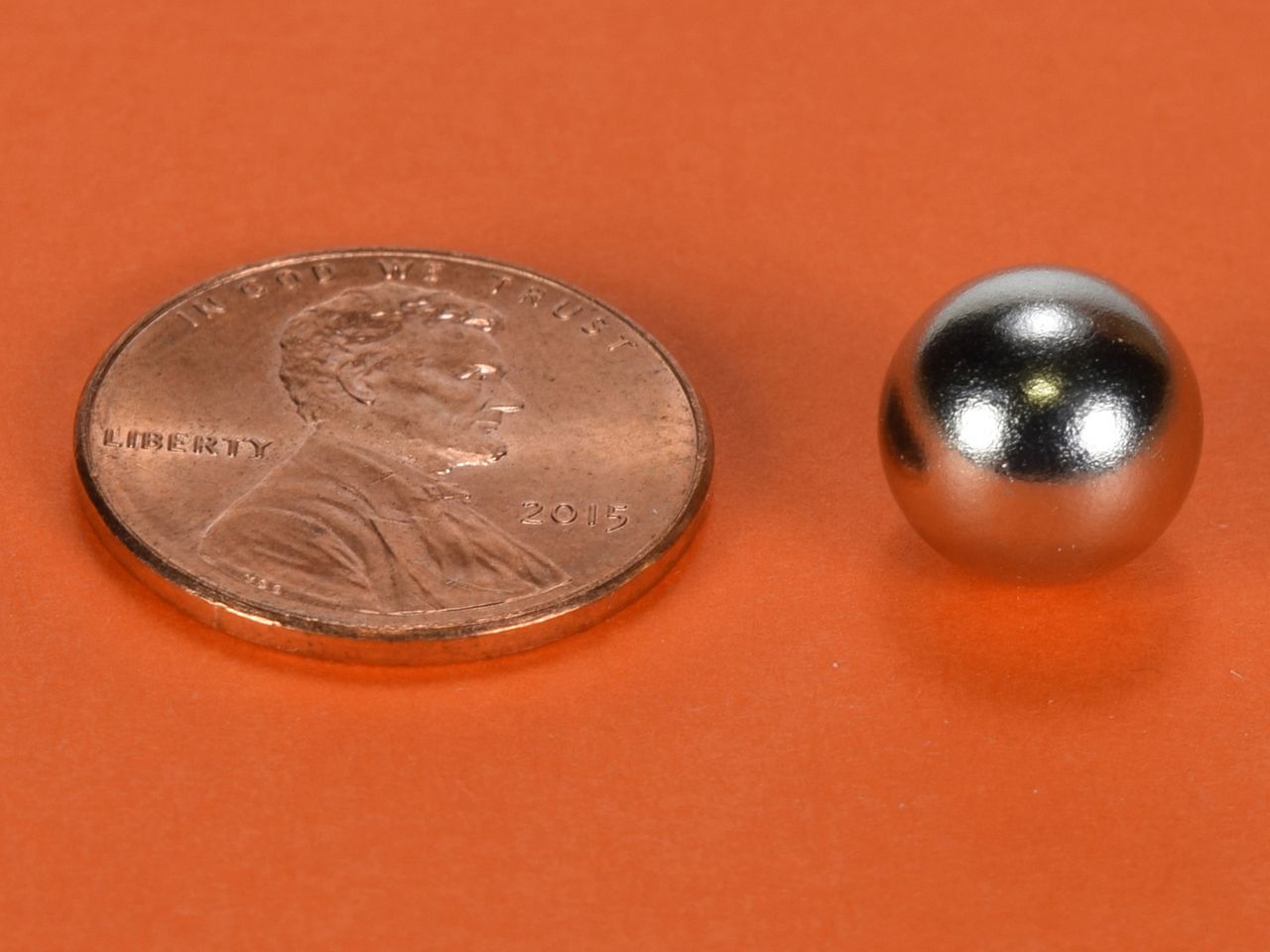

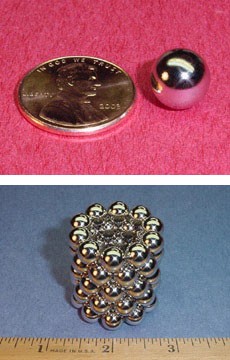

- Dimensions: 3/8" diameter
- Tolerances: ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: NiCuNi (Nickel)
- Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
- Weight: 0.12 oz (3.39 g)
- Pull Force, Case 1: 3.69 lbs
- Pull Force, Case 2: 4.39 lbs
- Surface Field: 8815 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
This size is also available with Black Nickel plating as part number S6B and with Gold plating as part number S6G.
![]() | Click this link for a depiction of the magnetic field. |
![]() | View B-H curves for this magnet. |
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link for a REACH compliance statement. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
