- Dimensions: 1/4"od x (1/10" x 1/21") x 1/4"
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Black Ni (Black Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0405 oz. (1.15 g)
- Pull Force: 2.89 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

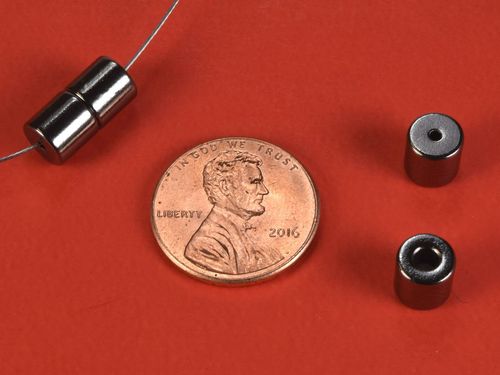

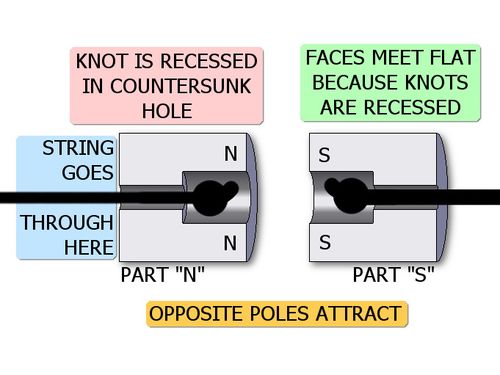

The rings are sold in pairs because there are two different magnetization directions on the rings to allow them to work as clasps. One of the magnets in the pair has the north pole on the counersunk hole side and the other has the south pole on that side. This allows the two faces to meet flat, as a knot fits inside the countersunk hole in the ring. The clasps are plated in black nickel for a shiny, charcoal-colored finish. The small hole is 1/21" and the large hole is 1/10".
