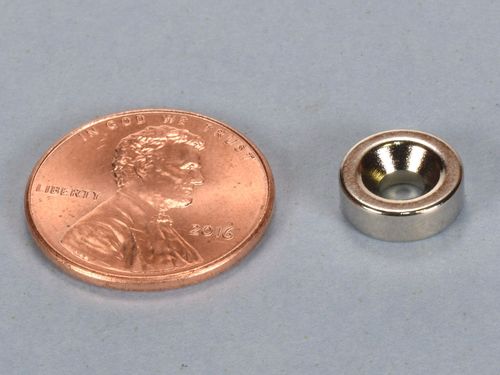

R622CS-N - Neodymium Countersunk Ring Magnet - 3/8 " Dia x 0.136" ID x 1/8" Thi

• Dimensions: 3/8" od x 1/8" thick with countersunk hole for #4 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0532 oz. (1.51 g)
• Pull Force, Case 1: 3.56 lbs
• Pull Force, Case 2: 6.92 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Strong countersunk ring magnets sized specifically for #4 flat-head screws.  The north pole is on the side of the magnet with the large hole, where the head of the screw would be.

These countersunk rings can be used for a wide range of applications including closures for cabinet doors and handbags.
