R622CS-P - Neodymium Countersunk Ring Magnet - 3/8 " Dia x 0.136" ID x 1/8" Thi

• Dimensions: 3/8" od x 1/8" thick with countersunk hole for #4 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.106 oz. (3.02 g) (per pair)
• Pull Force, Case 1: 3.56 lbs
• Pull Force, Case 2: 6.92 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

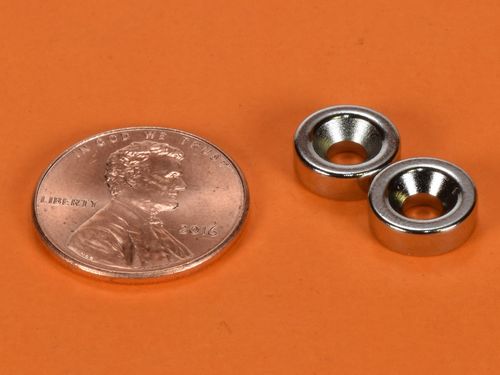

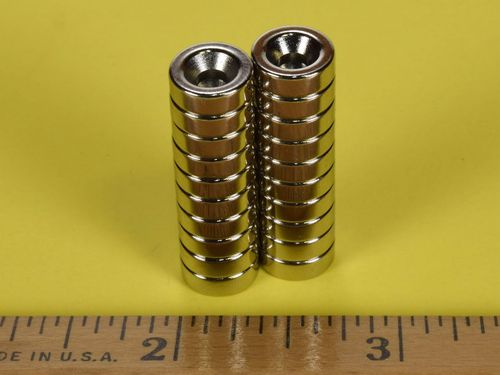

Strong countersunk ring magnets sized specifically for #4 flat-head screws.

These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.

These countersunk rings can be used for a wide range of applications including closures for cabinet doors and handbags.
