R824DCS - Neodymium Countersunk Ring Magnet - 1/2" Dia x 0.136" ID x 1/4" Thi

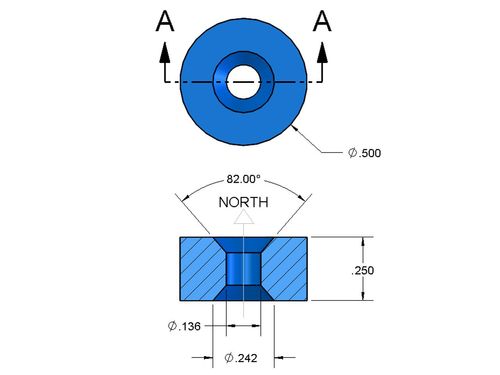

• Dimensions: 1/2" od x 1/4" thick w/ holes to accept #4 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.197 oz. (5.58 g)
• Pull Force, Case 1: 10.25 lbs
• Pull Force, Case 2: 18.42 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

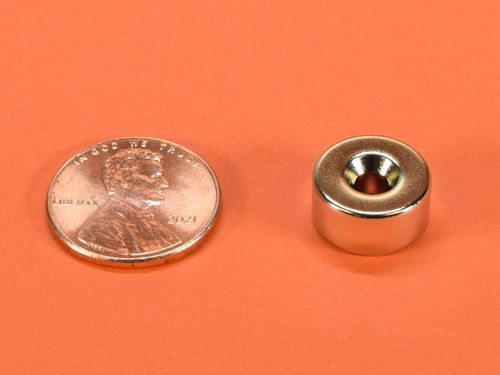

The R824DCS is similar to the thinner R822CS-N and R822CS-S countersunk ring magnets, but in a thicker, double-countersunk shape. Since it's double countersunk, it's also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.
