RE22CS-S-N52 - Neodymium Countersunk Ring Magnet - 7/8" Dia x 0.194" ID x 1/8" Thi

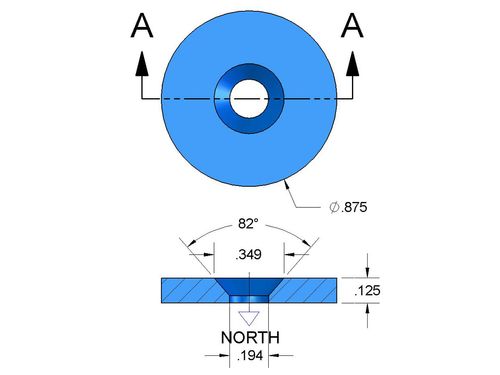

• Dimensions: 7/8" od x 1/8" thick with countersunk hole for #8 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.319 oz. (9.05 g)
• Pull Force, Case 1: 12.28 lbs
• Pull Force, Case 2: 47.14 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

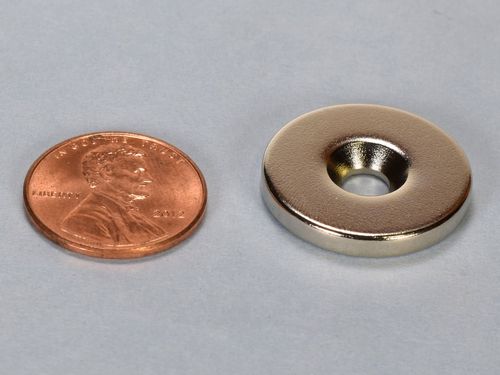

These are 7/8" diameter x 1/8" thick countersunk ring magnets sized to accept a #8 countersunk screw.  The RE22CS-S-N52 is magnetized with the south pole on the countersink side.

These countersunk rings can be used for a wide range of applications including door closures and tool hangers.
