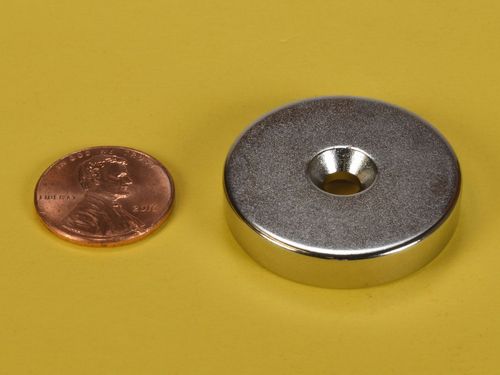

RX434DCS - Neodymium Countersunk Ring Magnet - 1 1/4" Dia x 0.194" ID x 1/4" Thi

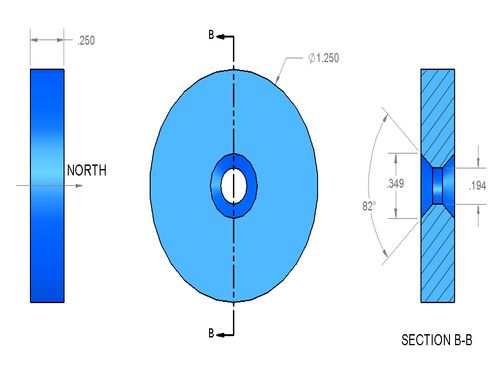

• Dimensions: 1 1/4" od x 0.194" id x 0.349" id x 1/4" thick w/ hole to accept #8 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.28 oz. (36.1 g)
• Pull Force, Case 1: 30.48 lbs
• Pull Force, Case 2: 82.84 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The RX434DCS is similar to some of our smaller countersunk ring magnets, but in a larger, more powerful size.  Since it's double countersunk, it's also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.
