RX836DCS - Neodymium Countersunk Ring Magnet - 1 1/2" Dia x 0.221" ID x 3/8 " Thi

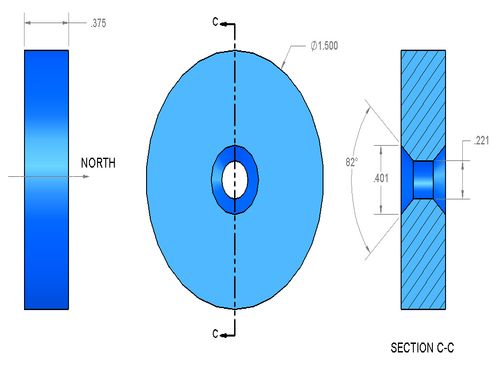

• Dimensions: 1 1/2" od x 0.221" id x 0.402" id x 3/8" thick w/ hole to accept #10 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 2.77 oz. (78.7 g)
• Pull Force, Case 1: 55.95 lbs
• Pull Force, Case 2: 113.2 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The RX836DCS is similar to some of our smaller countersunk ring magnets, but in a much larger, more powerful size.  Since it's double countersunk, it's also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.
