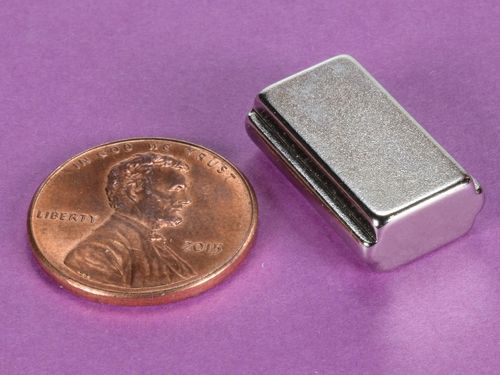

SB6C4-OUT - Neodymium Stepped Block Magnet - 3/8 " Len x 3/4" Wid x 1/4" Thi

• Dimensions: 3/8" length x 3/4" width x 1/4" thick , with step OUT
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.334 oz. (9.46 g)
• Pull Force, Case 1: 15.71 lbs
• Pull Force, Case 2: 26.51 lbs
• Surface Field: 4216 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

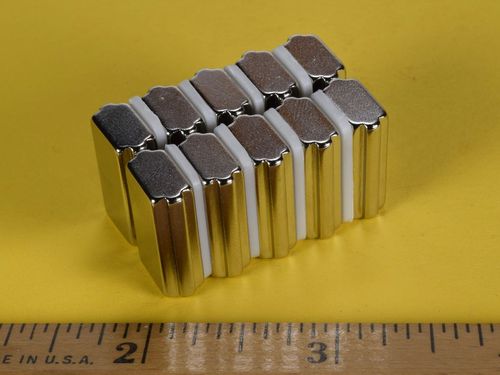

These stepped block magnets combine great holding power with outset steps on two sides.  This often asked-for feature enables the use of many methods of securing the magnet in your assembly.  For those trying to avoid the use of adhesives, this magnet is the answer.
