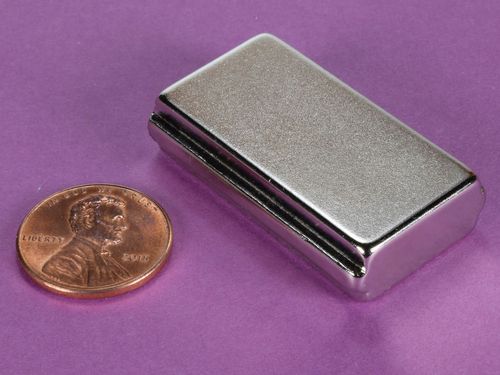

SBCX86-OUT - Neodymium Stepped Block Magnet - 3/4" Len x 1 1/2" Wid x 3/8 " Thi

• Dimensions: 3/4" length x 1 1/2" width x 3/8" thick , with step OUT
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 1.93 oz. (54.7 g)
• Pull Force, Case 1: 48.63 lbs
• Pull Force, Case 2: 87.52 lbs
• Surface Field: 3605 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

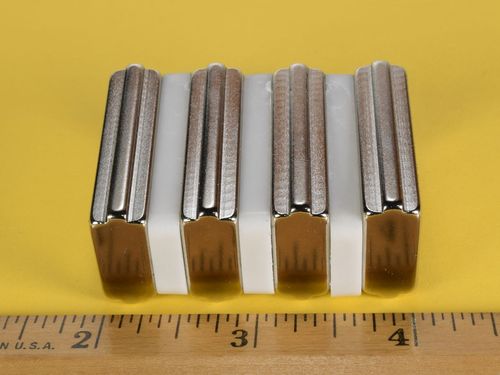

These stepped block magnets combine great holding power with outset steps on two sides.  This often asked-for feature enables the use of many methods of securing the magnet in your assembly.  For those trying to avoid the use of adhesives, this magnet is the answer.
