SBX0Y06-IN - Neodymium Stepped Block Magnet - 1" Len x 2" Wid x 3/8 " Thi

• Dimensions: 1" length x 2" width x 3/8" thick , with step IN
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 3.12 oz. (88.4 g)
• Pull Force, Case 1: 59.23 lbs
• Pull Force, Case 2: 130.8 lbs
• Surface Field: 3146 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

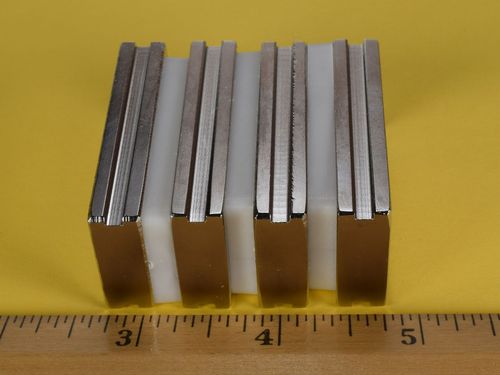

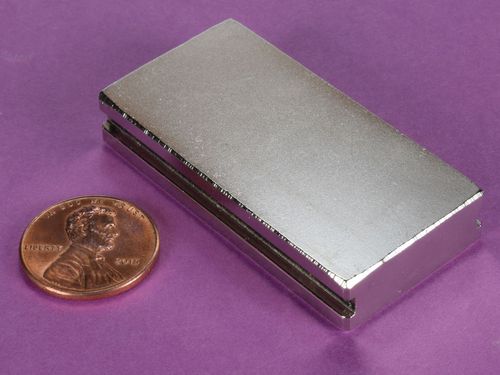

These stepped block magnets combine great holding power with inset steps on two sides.  This often asked-for feature enables the use of many methods of securing the magnet in your assembly.  For those trying to avoid the use of adhesives, this magnet is the answer.
