- Dimensions: 3/8" x 3/8" x 3/8" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Black Rubber
- Magnetization Direction: Thru Thickness
- Weight: 0.190 oz. (5.39 g)
- Pull Force, Case 1: 4.64 lbs
- Pull Force, Case 2: 5.97 lbs
- Surface Field: 5627 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe

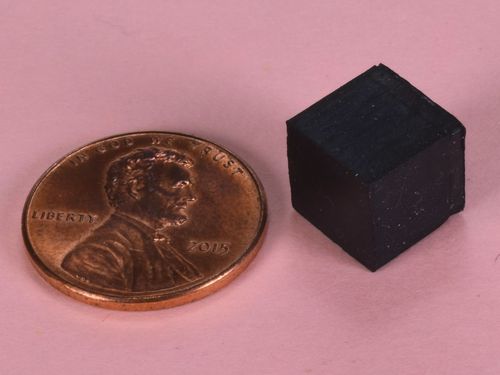

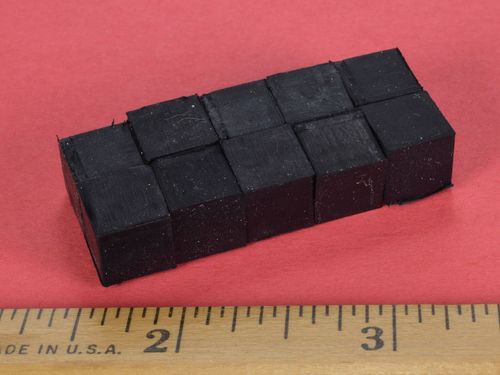

The dimensions of these cubes are the outer dimensions of the rubber coating.
![]() |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() |
