- Dimensions: 1/2" x 1/4" x 1/8" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.0678 oz. (1.92 g)
- Pull Force, Case 1: 4.80 lbs
- Pull Force, Case 2: 10.42 lbs
- Surface Field: 3723 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

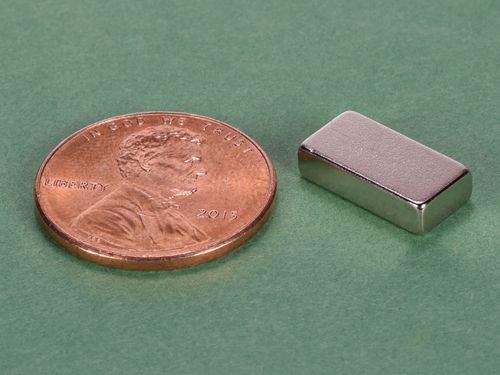

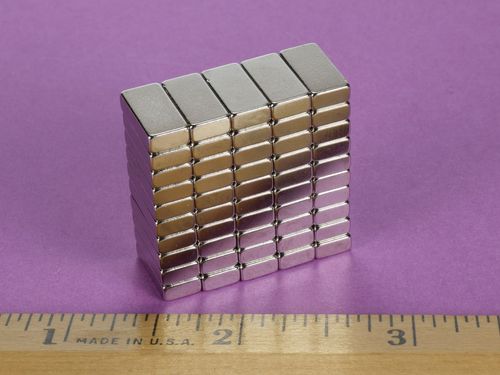

These mini rectangles are very handy. They are great for hanging papers and
posters and most anything else you can think of.
This size is also
available in grade N52 as part number
B842-N52.
|
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
|
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
|
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
|
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
|
Click this link for a depiction of the magnetic field. |
|
View B-H curves for this magnet. |
|
Click this link to download a PDF Specification Sheet. |
|
Click this link to download a PDF drawing of this product. |
|
Click this link to download a Certificate of Compliance for this product. |
|
Click this link to download a RoHS Statement of Compliance for this product. |
|
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
|
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
|
Click this link to download a Certificate of Origin for this product. |
|
Click this link for a REACH compliance statement. |
|
Click this link to download a .STEP file (3D model). |
|
Click this link to download an .IGS file (3D model). |
