BCC4DCS - Neodymium Countersunk Block Magnet - 3/4" Len x 3/4" Wid x 1/4" Thi

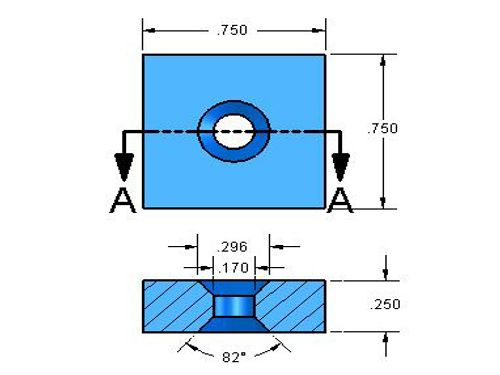

• Dimensions: 3/4" x 3/4" x 1/4" thick w/ countersunk hole to accept #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.572 oz. (16.21 g)
• Pull Force, Case 1: 19.26 lbs
• Pull Force, Case 2: 39.93 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BCC4DCS is a strong block magnet with the added benefit of having two countersunk holes- one on each side of the magnet. This enables this mighty magnet to be attached to surfaces such as wood, aluminum, stainless steel, etc. And it's reversible, so it can be oriented either north-side-up or south-side-up with the exact same results.

See our full line of Countersunk Magnets.

This size is also available without the countersunk hole as part number BCC4.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
