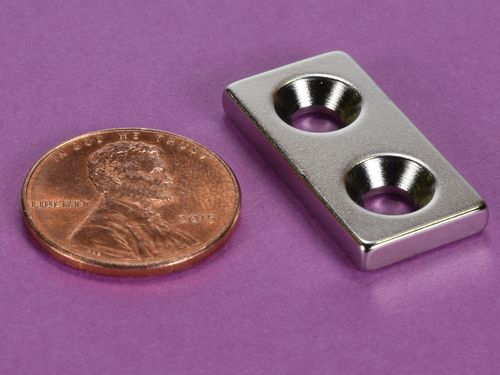

BX082CS-S - Neodymium Countersunk Block Magnet - 1" Len x 1/2" Wid x 1/8" Thi

bx082cs-s-neodymium-countersunk-block-magnet--thumbnail-1

bx082cs-s-neodymium-countersunk-block-magnet--thumbnail-2

$2.23

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.23	1-4
$2.18	5-9	2%
$2.13	10-24	4%
$2.08	25-49	7%
$2.03	50-99	9%
$1.98	100-249	11%
$1.93	250-499	13%
$1.88	500-999	16%
$1.83	1000-2499	18%
$1.78	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1/2" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.233 oz. (6.61 g)
Pull Force, Case 1: 9.19 lbs
Pull Force, Case 2: 32.45 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Here we offer the popular size of 1" x 1/2" in 1/8" thickness with holes for two #6 flathead screws to allow for easy fastening. The BX082CS-S is magnetized with the south pole on the countersink side.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.

NOTE: As of May 2014, this product accepts #6 screws.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
