> BX084PC-RED - Neodymium Plastic Coated Block Magnet

BX084PC-RED - Neodymium Plastic Coated Block Magnet - 1" Len x 1/2" Wid x 1/4" Thi

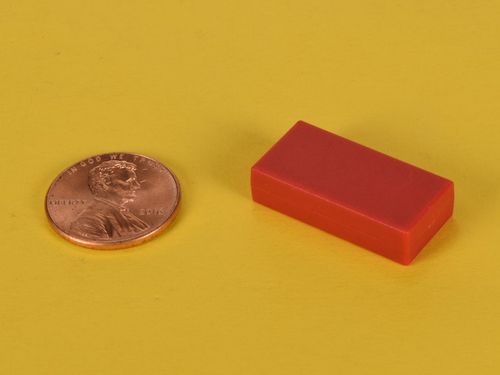

bx084pc-red-neodymium-plastic-coated-block-magnet--thumbnail-1

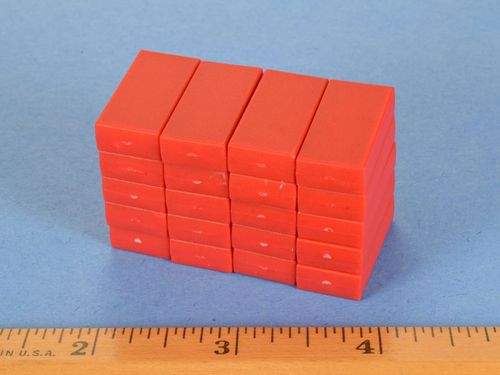

bx084pc-red-neodymium-plastic-coated-block-magnet--thumbnail-2

$3.92

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.92	1-4
$3.83	5-9	2%
$3.74	10-24	5%
$3.66	25-49	7%
$3.57	50-99	9%
$3.48	100-249	11%
$3.39	250-499	14%
$3.31	500-999	16%
$3.22	1000-2499	18%
$3.13	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1/2" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni-Red Plastic
Magnetization Direction: Thru Thickness
Weight: 0.381 oz. (10.8 g)
Pull Force, Case 1: 8.26 lbs
Pull Force, Case 2: 17.62 lbs
Surface Field: 3723 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These great magnets are coated with a durable layer of plastic. The 1" x 1/2" x 1/4" dimensions are the finished dimensions of the plastic coating. These blocks can be slammed together many times without damage. They won"t mark or scratch surfaces they come in contact with. They are also completely waterproof and weatherproof. Please note: Slight color variation may occur from order to order.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
