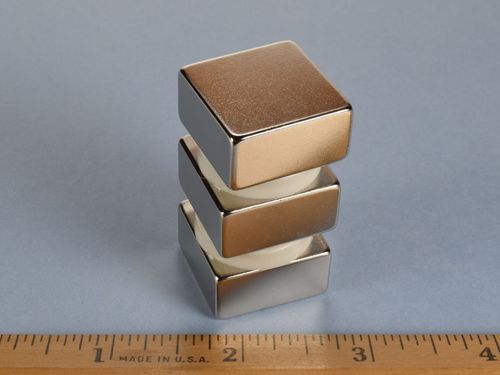

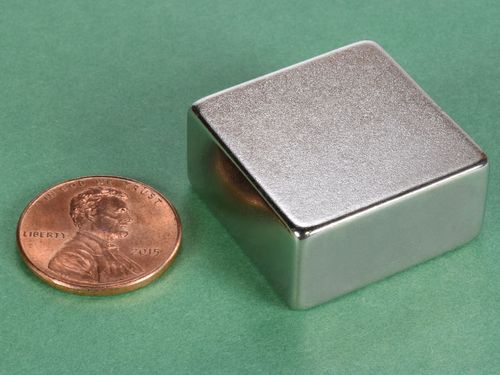

BX0X08-N52 - Neodymium Block Magnet - 1" Len x 1" Wid x 1/2" Thi

• Dimensions: 1" x 1" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 2.17 oz. (61.5 g)
• Pull Force, Case 1: 67.40 lbs
• Pull Force, Case 2: 92.16 lbs
• Surface Field: 4933 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

These sturdy blocks are very strong for their size and must be handled with care to avoid being pinched between two of them.

Also available in this size: BX0X08 (Grade N42), BX0X08DCB (Grade N42, Double Counterbored), BX0X08DCSPC-BLK (Grade N42, Double Countersunk, Black plastic coated)

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
