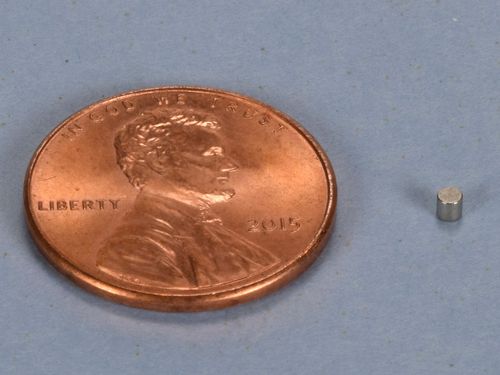

D11-N52 - Neodymium Cylinder Magnet - 1/16" Dia x 1/16" Thi

• Dimensions: 1/16" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.000831 oz. (0.0236 g)
• Pull Force, Case 1: 0.12 lbs
• Pull Force, Case 2: 0.12 lbs
• Surface Field: 6619 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

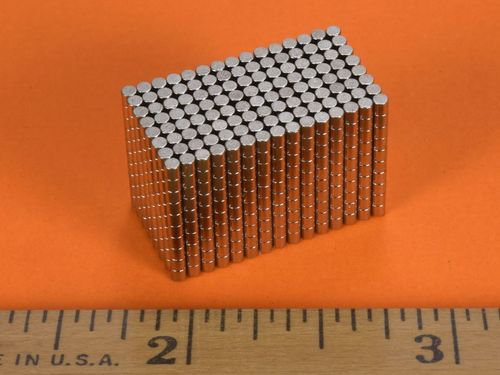

These small, N52 grade cylinders are often used as triggering devices for Hall Effect sensors. They are also useful for small arts & crafts applications and tiny fridge magnets.

This size is also available in grade N42SH as part number D11SH.

These magnets are sold in packs of 10.  Order a quantity of 1 and get 10 magnets.  Order a quantity of 2 and get 20 magnets.  Order a quantity of 3 and get 30...

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
