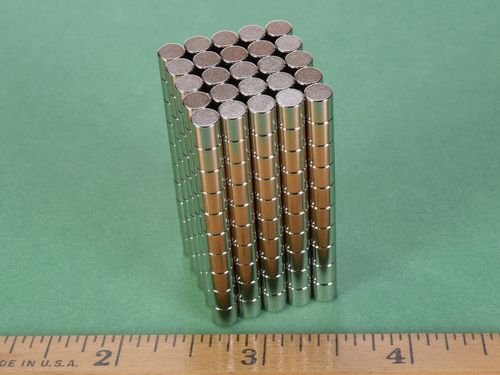

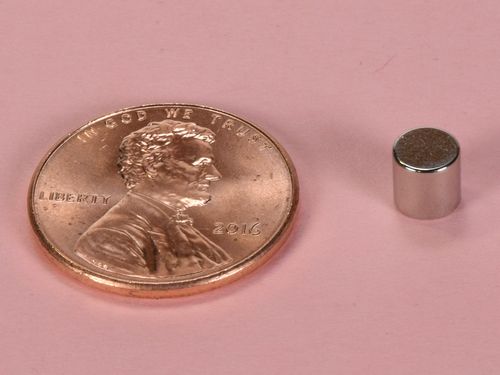

D33SH - Neodymium High Temp Cylinder Magnet - 3/16" Dia x 3/16" Thi

• Dimensions: 3/16" dia. x 3/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0224 oz. (0.636 g)
• Pull Force, Case 1: 1.84 lbs
• Pull Force, Case 2: 2.05 lbs
• Surface Field: 5903 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Our D33 cylinder magnets are an interesting size. Very strong, yet small enough to handle with ease. Great for arts and crafts, fridge magnets, etc.

The SH grades have a maximum operating temperature of 302ºF (150ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).  These are great for applications where you need to place a small magnet in a high temperature environment.

This size is also available in grade N52 as part number D33-N52 and in grade N42 as part number D33.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
