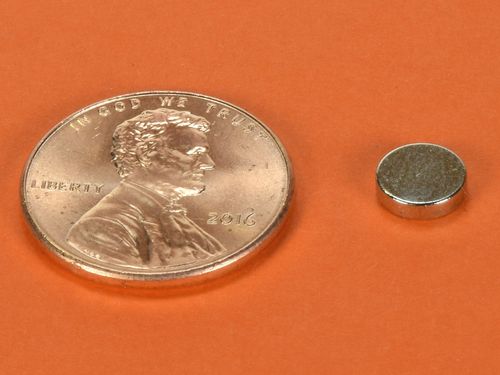

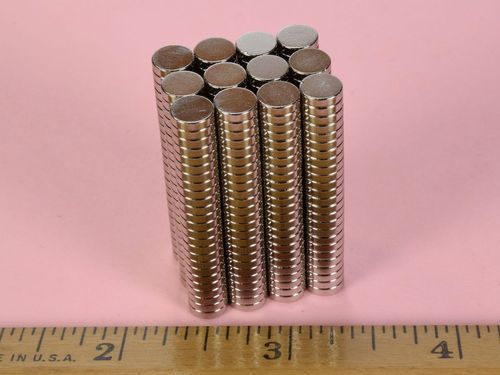

D41SH - Neodymium High Temp Disc Magnet - 1/4" Dia x 1/16" Thi

• Dimensions: 1/4" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0133 oz. (0.377 g)
• Pull Force, Case 1: 1.19 lbs
• Pull Force, Case 2: 3.57 lbs
• Surface Field: 2952 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Thin little 1/4" magnets. Very strong and very handy. The D41SH discs are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 302° F (150° C) without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 176° F (80° C). Suitable for many high temperature applications.

This size is also available in grade N52 as part number D41-N52, in grade N42 (standard temp.) as part number D41 and in grade N52 with Gold plating as part number D41G-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
