D4X0DIA - Neodymium Diametric Cylinder Magnet - 1/4" Dia x 1" Thi

• Dimensions: 1/4" dia. x 1" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Diametrical (Poles on Curved Sides)
• Weight: 0.213 oz. (6.03 g)
• Pull Force, Case 1: 9.38 lbs
• Pull Force, Case 2: 14.77 lbs
• Surface Field: 6698 Gauss
• Max Operating Temp: 176º F (80º C)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

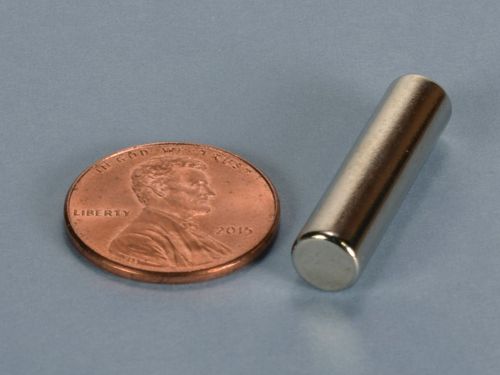

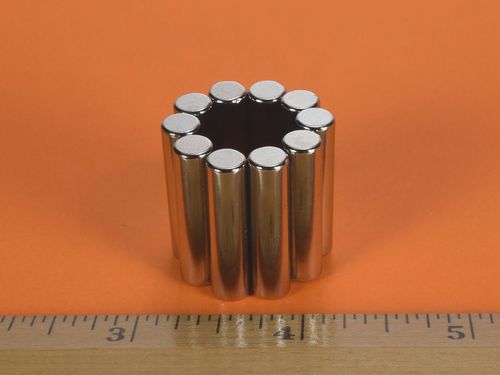

The 1/4" by 1" cylinder is one of our most popular sizes due to its great versatility. The D4X0DIA is a little different in that it is diametrically magnetized, which means the curved sides will attract instead of the flat ends.

This size is also available axially magnetized as part number D4X0 and with a small dimple on the north end as part number D4X0-ND.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
