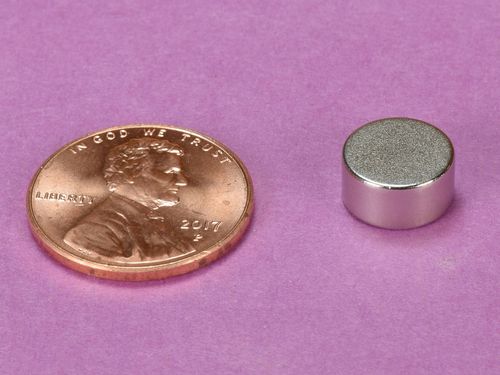

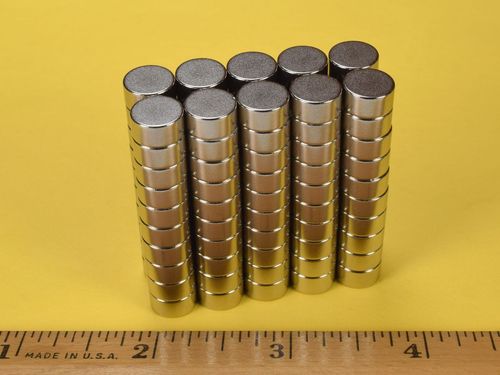

- Dimensions: 3/8" dia. x 3/16" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N35AH
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0898 oz. (2.55 g)
- Pull Force, Case 1: 4.84 lbs
- Pull Force, Case 2: 7.58 lbs
- Surface Field: 4278 Gauss
- Max Operating Temp: 428ºF (220ºC)
- Brmax: 12,100 Gauss
- BHmax: 35 MGOe
The AH grades have a maximum operating temperature of 428ºF (220ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).
This size is also available in grade N42 as part number D63 and in grade N52 as part number D63-N52.
|
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
|
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
|
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
|
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
|
Click this link for a depiction of the magnetic field. |
|
View B-H curves for this magnet. |
|
Click this link to download a PDF Specification Sheet. |
|
Click this link to download a drawing of this product. |
|
Click this link to download a Certificate of Compliance for this product. |
|
Click this link to download a RoHS Statement of Compliance for this product. |
|
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
|
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
|
Click this link to download a Certificate of Origin for this product. |
|
Click this link for a REACH compliance statement. |
|
Click this link to download a .STEP file (3D model). |
|
Click this link to download an .IGS file (3D model). |
