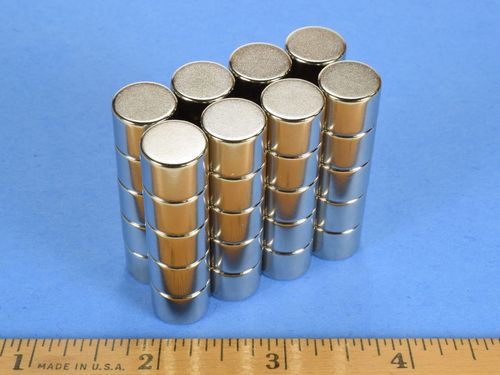

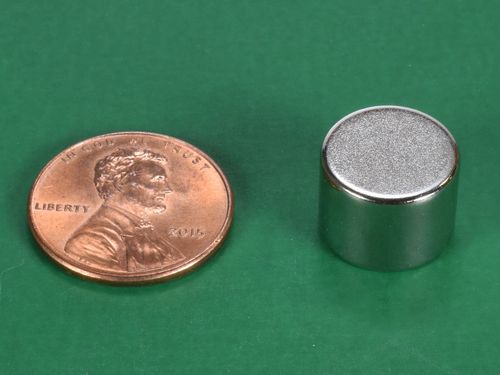

D86-N52 | 1/2" Dia x 3/8 " Thi | Neodymium Disc Magnet

Price ea.	Qty	Discount
$3.08	1-4
$3.01	5-9	2%
$2.94	10-24	5%
$2.88	25-49	6%
$2.81	50-99	9%
$2.74	100-249	11%
$2.67	250-499	13%
$2.61	500-999	15%
$2.54	1000-2499	18%
$2.47	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Dimensions: 1/2" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.319 oz. (9.05 g)
Pull Force, Case 1: 16.63 lbs
Pull Force, Case 2: 20.18 lbs
Surface Field: 6157 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

The D86-N52 discs are right on the cusp of the Cylinder category. Their large, powerful surface area and easy-to-grip height make them perfect for projects where a taller magnet just won't do.

This size is also available in grade N42 as part number D86.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).

D86-N52 - Neodymium Disc Magnet - 1/2" Dia x 3/8 " Thi
