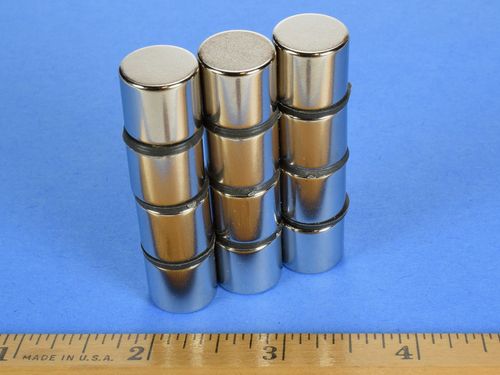

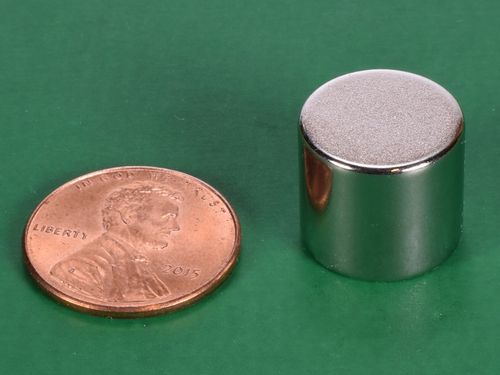

D98 - Neodymium Disc Magnet - 9/16" Dia x 1/2" Thi

d98-neodymium-disc-magnet

d98-neodymium-disc-magnet--thumbnail-1

d98-neodymium-disc-magnet--thumbnail-2

$3.78

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.78	1-4
$3.70	5-9	2%
$3.61	10-24	4%
$3.53	25-49	7%
$3.44	50-99	9%
$3.36	100-249	11%
$3.27	250-499	13%
$3.19	500-999	16%
$3.10	1000-2499	18%
$3.02	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 9/16" dia. x 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.539 oz. (15.27 g)
Pull Force, Case 1: 18.60 lbs
Pull Force, Case 2: 21.50 lbs
Surface Field: 5752 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The D98 is a strong and sturdy magnet, suitable for a wide range of applications.
