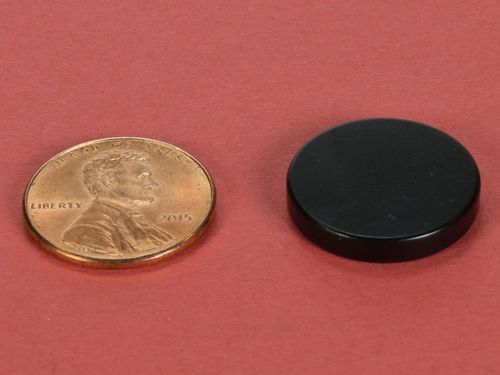

DC2E - Neodymium Epoxy Coated Disc Magnet - 3/4" Dia x 1/8" Thi

• Dimensions: 3/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Black Epoxy
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.239 oz. (6.79 g)
• Pull Force, Case 1: 9.76 lbs
• Pull Force, Case 2: 36.00 lbs
• Surface Field: 2087 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

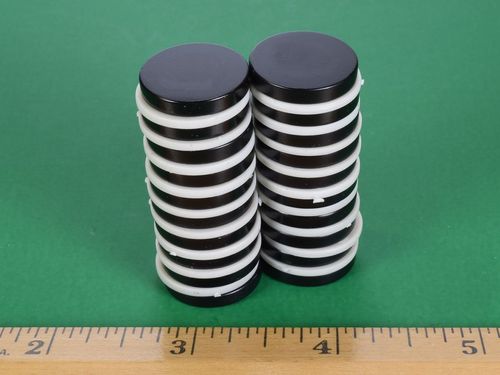

These black epoxy coated discs are suitable for applications that require extra corrosion resistance. Epoxy is the most corrosion resistant of the neodymium coating options. The coating gives the magnets a deep, black finish. Epoxy coated magnets are a good option if you will be using the magnets outdoors or in a humid environment.

This size is also available in grade N52 as part number DC2-N52 and in grade N42 with our standard Nickel plating as part number DC2.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
