MMS-A-Y0 - Neodymium Countersunk Mounting Magnet - 2" Dia

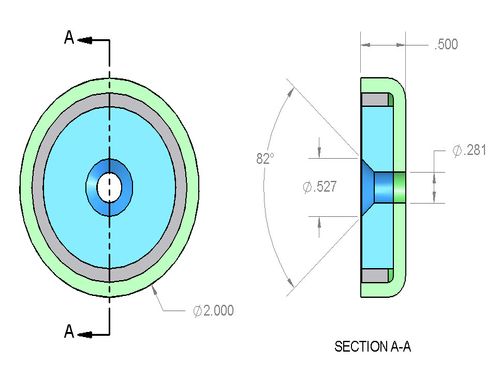

• Dimensions:
      Diameter= 2" (2.00")
      Hole Size= 1/4" Screw
      Height= 1/2" (0.500")
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 5.95 oz. (168.74 g)
• Pull Force: 168.3 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

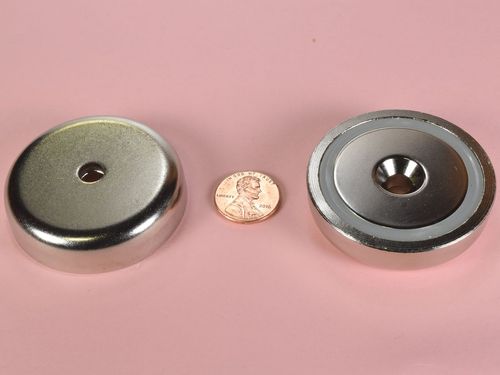

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
