> MMS-A-Z0 - Neodymium Countersunk Mounting Magnet

MMS-A-Z0 - Neodymium Countersunk Mounting Magnet - 3" Dia

mms-a-z0-neodymium-countersunk-mounting-magnet--thumbnail-1

mms-a-z0-neodymium-countersunk-mounting-magnet--thumbnail-2

$94.02

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$94.02	1
$91.93	2	2%
$89.84	3-4	4%
$87.75	5-9	7%
$85.66	10-14	9%
$83.58	15-19	11%
$81.49	20-24	13%
$79.40	25-49	16%
$77.31	50-99	18%
$75.22	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions:
    Diameter= 3" (3.00")
    Hole Size= 3/8" Screw
    Height= 3/4" (0.750")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 20.53 oz. (582.2 g)
Pull Force: 350.1 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

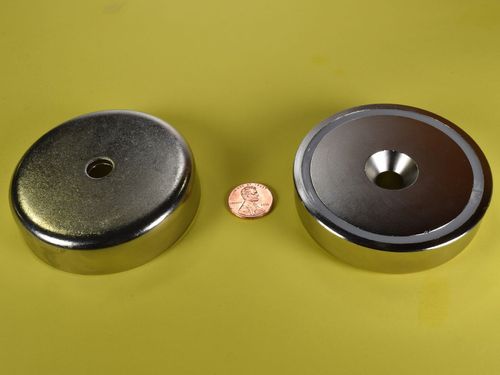

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.

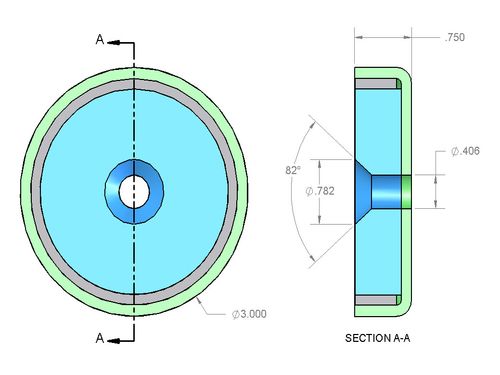

	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
