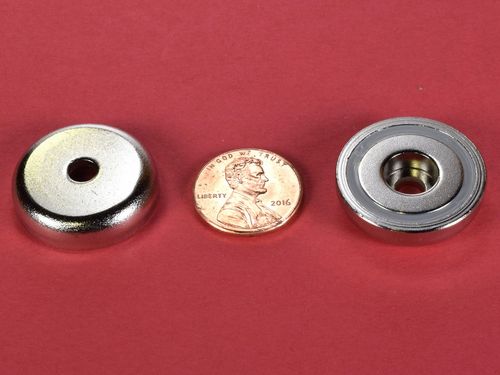

MMS-B-X0 - Neodymium Counterbored Mounting Magnet - 1" Dia

mms-b-x0-neodymium-counterbored-mounting-magnet--thumbnail-1

mms-b-x0-neodymium-counterbored-mounting-magnet--thumbnail-2

$4.10

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.10	1-4
$4.01	5-9	2%
$3.92	10-24	4%
$3.83	25-49	7%
$3.74	50-99	9%
$3.64	100-249	11%
$3.55	250-499	13%
$3.46	500-999	16%
$3.37	1000-2499	18%
$3.28	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

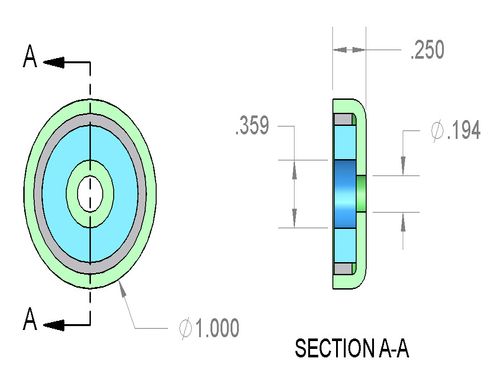

Dimensions:
    Diameter = 1" (1.00")
    Hole Size = #8 Screw
    Height = 1/4" (0.25")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.682 oz. (19.34 g)
Pull Force: 30.49 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
