> MMS-B-X8 - Neodymium Counterbored Mounting Magnet

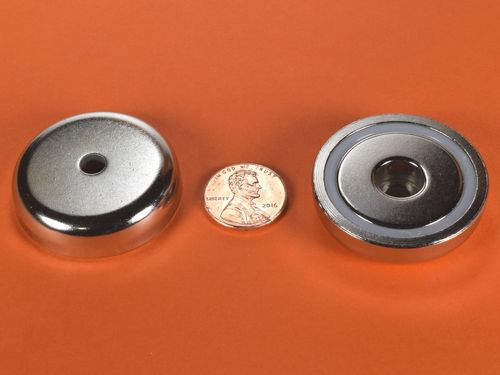

MMS-B-X8 - Neodymium Counterbored Mounting Magnet - 1 1/2" Dia

mms-b-x8-neodymium-counterbored-mounting-magnet--thumbnail-1

mms-b-x8-neodymium-counterbored-mounting-magnet--thumbnail-2

$9.00

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$9.00	1
$8.80	2-4	2%
$8.60	5-9	4%
$8.40	10-24	7%
$8.20	25-49	9%
$8.00	50-99	11%
$7.80	100-249	13%
$7.60	250-499	16%
$7.40	500-999	18%
$7.20	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

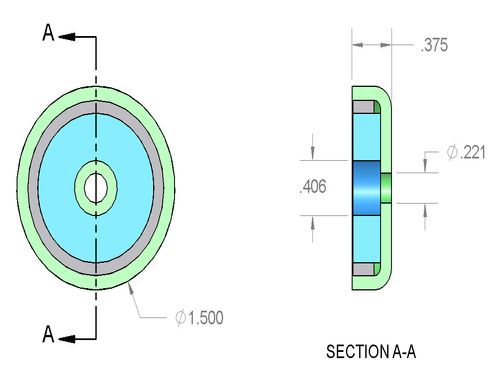

Dimensions:
    Diameter = 1 1/2" (1.50")
    Hole Size = #10 Screw
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.408 oz. (68.25 g)
Pull Force: 86.01 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
