MMS-G-Z0 - Neodymium Eye Hook Mounting Magnet - 3" Dia

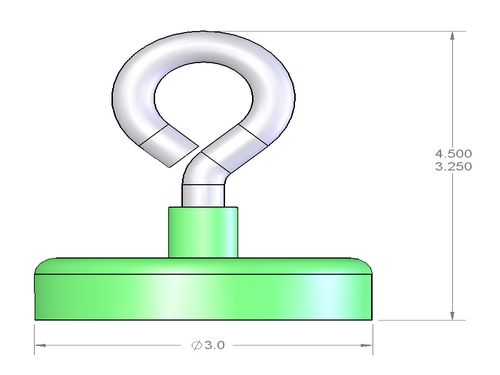

• Dimensions:
      Diameter = 3" (3.00")
      Height = 4 3/8" (4.375")
      Hook Attachment = 3/8"-16 Threaded Eye Hook
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 24.55 oz. (695.8 g)
• Pull Force: 352.4 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

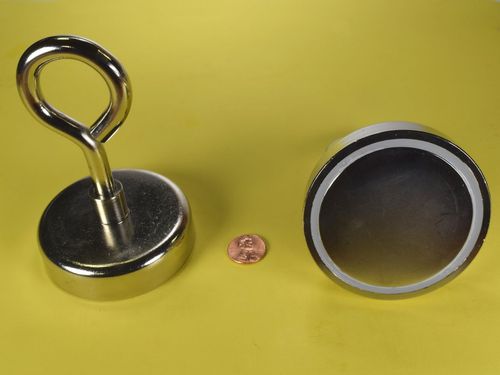

The MMS-G is an incredibly powerful magnet with an eye hook attached. Need to hang something in or on your locker? fridge? filing cabinet? This is the magnet you need! If you've ever fought to position a drop light while you were working on a car, or anything for that matter, you understand how valuable one of these magnetic eye hooks could be for unrestricted light placement. The possible uses for these great magnets are unlimited! The eye hook, magnet and mount are all nickel plated to resist corrosion and to provide that nice shiny, silver finish.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
