NSWX02 - Steel Washer for Magnets

nswx02-steel-washer-for-magnets--thumbnail-2

$0.75

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.75	1-9
$0.69	10-24	8%
$0.65	25-49	13%
$0.60	50-99	20%
$0.58	100-249	23%
$0.56	250-499	25%
$0.51	500-999	32%
$0.48	1000-2499	36%
$0.45	2500-4999	40%
Email us for even bigger discounts on higher order quantities

Description
Downloads

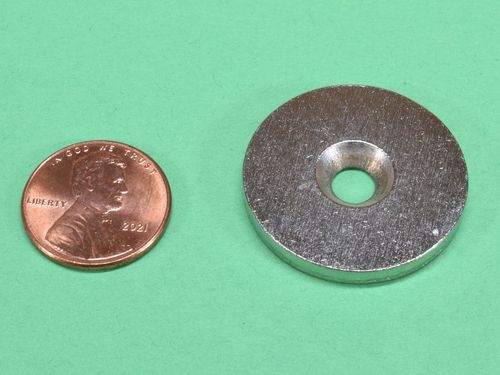

Steel Washer, Countersunk, Nickel PLated

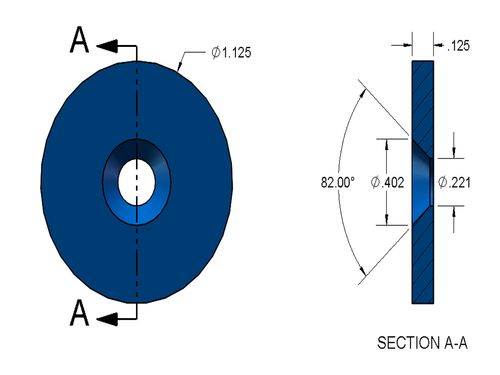

1 1/8" diameter x 1/8" thick

These washers are designed for use with our NSCX02 steel cups and DX02 disc magnets. They can be used to create a clean, modern latch assembly for doors and hatches. The washer is countersunk to accept a wood or metal screw to provide a flat surface area for magnet contact.

These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately.

	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
