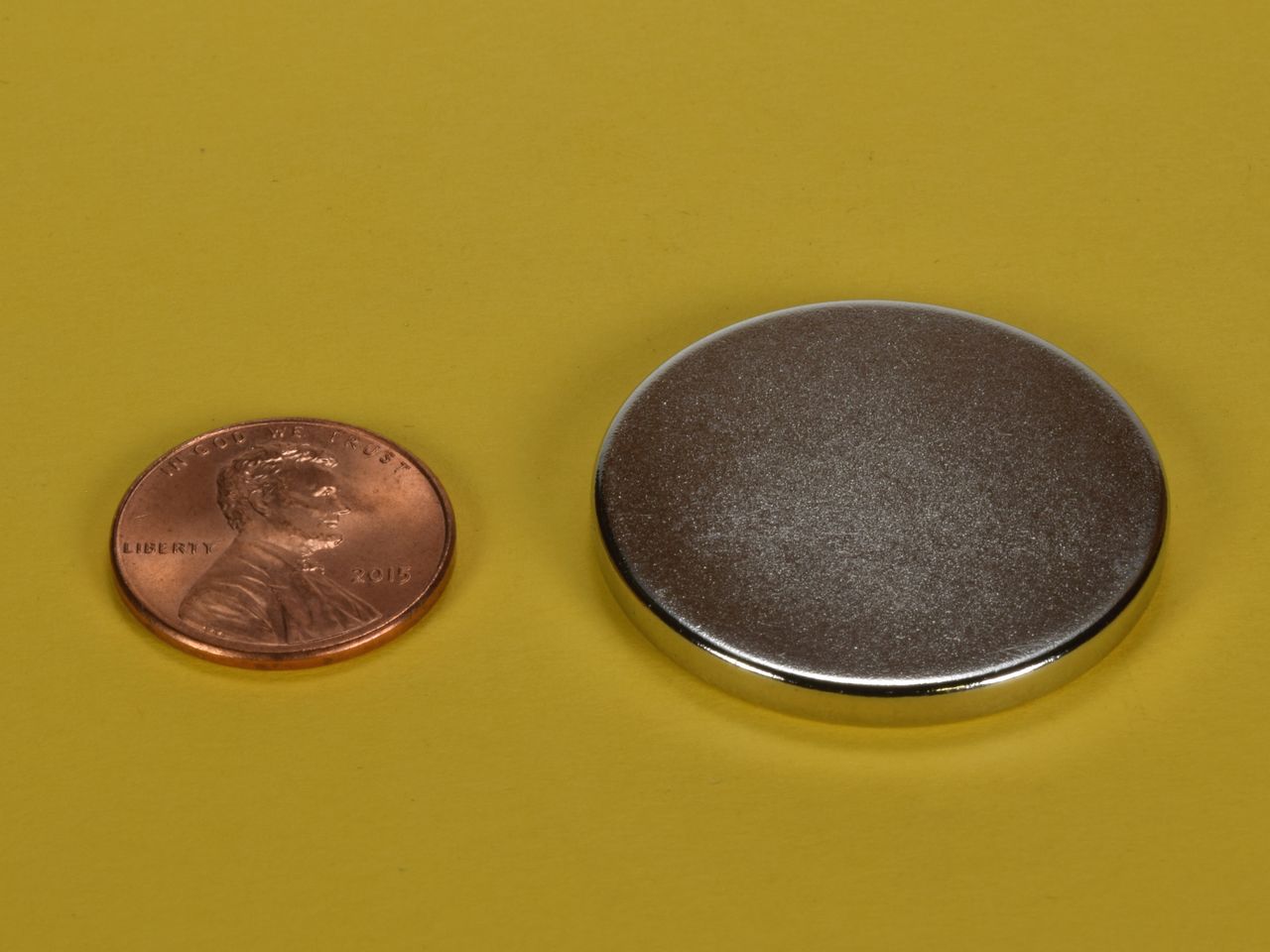

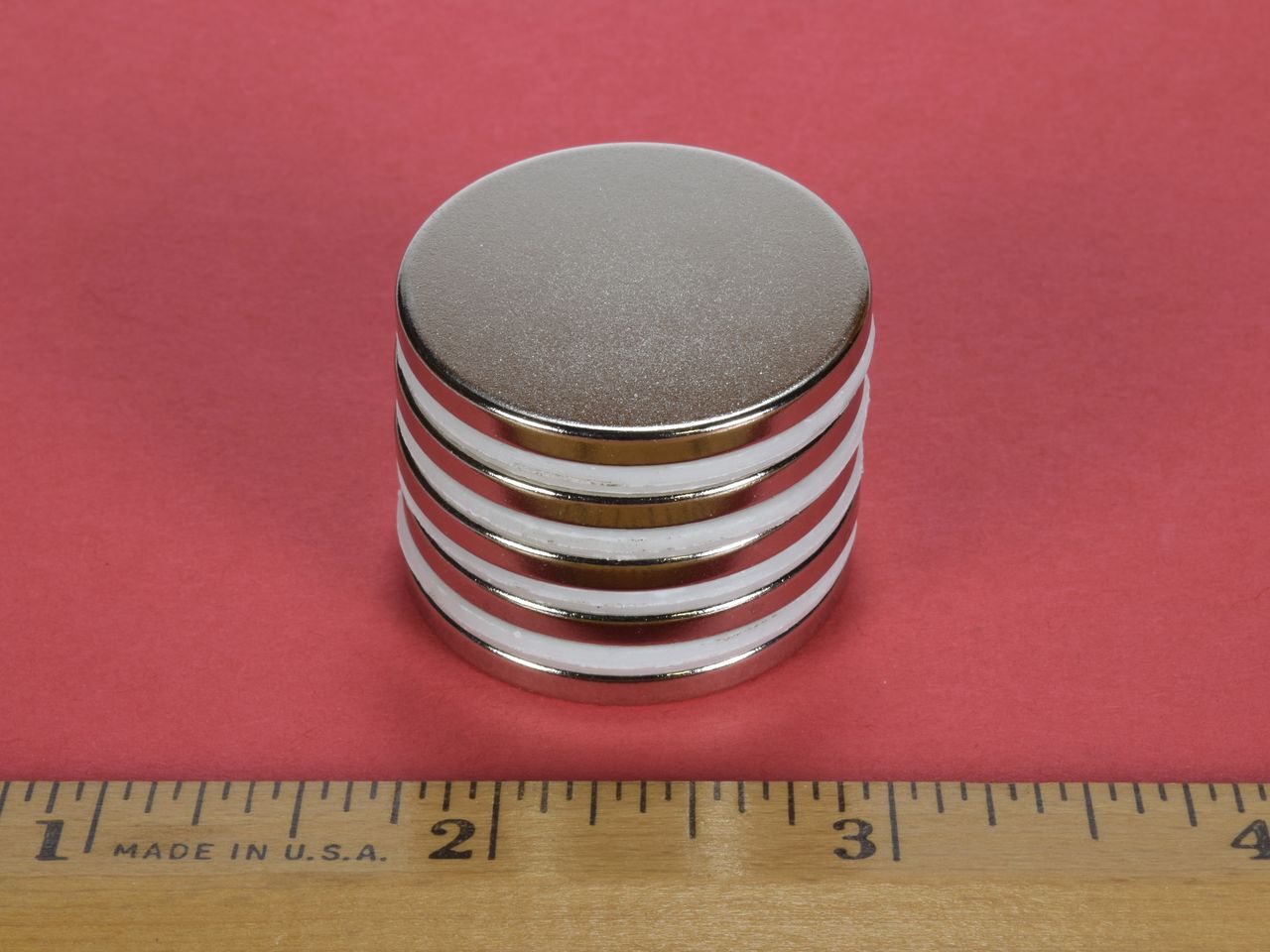

DX42 - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 1 1/4" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.665 oz. (18.9 g)
Pull Force, Case 1: 16.32 lbs
Pull Force, Case 2: 86.77 lbs
Surface Field: 1294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These strong, thin discs are a great solution for a wide range of heavy holding applications. They are sturdy and powerful, so therefore, amazingly useful. The DX42 is only slightly difficult to separate by hand... but they can still pinch quite hard if not handled with care.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $5.02

Quantity:

Qty:

Price ea.	Qty
$5.02	1-4
$4.91	5-9
$4.80	10-24
$4.68	25-49
$4.57	50-99
$4.46	100-249
$4.35	250-499
$4.23	500-999
$4.12	1000-2499
$4.01	2500-4999
For pricing at higher order quantities, please email us!
