MMS-B-X8 - Counterbored Mounting Magnet

Description
Technical
Downloads

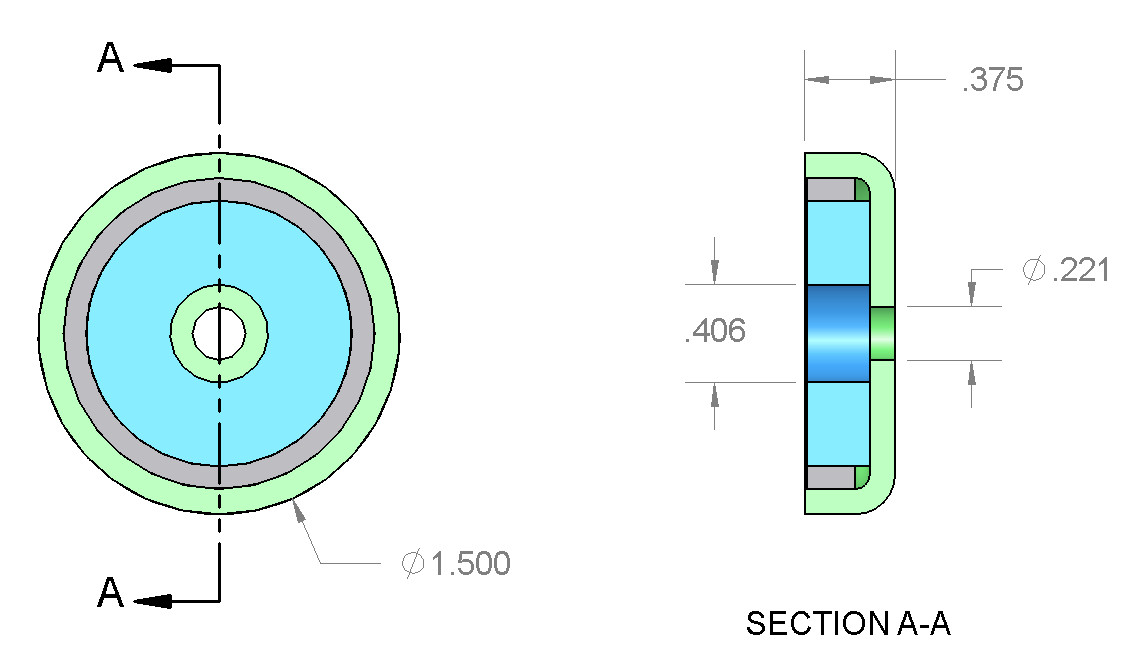

Dimensions:
    Diameter = 1 1/2" (1.50")
    Hole Size = #10 Screw
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.408 oz. (68.25 g)
Pull Force: 86.01 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

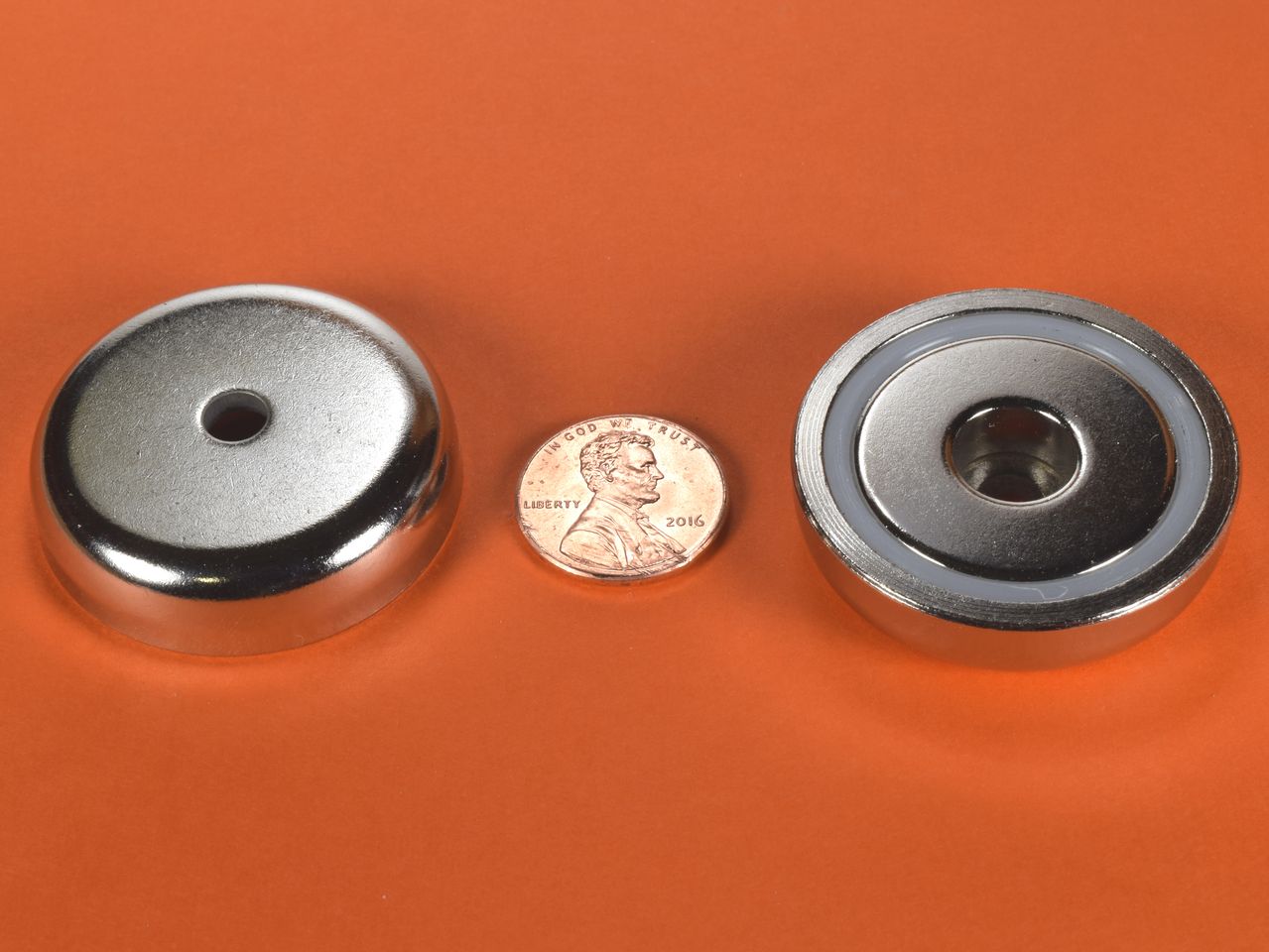

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.00

Quantity:

Qty:

Price ea.	Qty
$9.00	1
$8.80	2-4
$8.60	5-9
$8.40	10-24
$8.20	25-49
$8.00	50-99
$7.80	100-249
$7.60	250-499
$7.40	500-999
$7.20	1000-2499
For pricing at higher order quantities, please email us!
