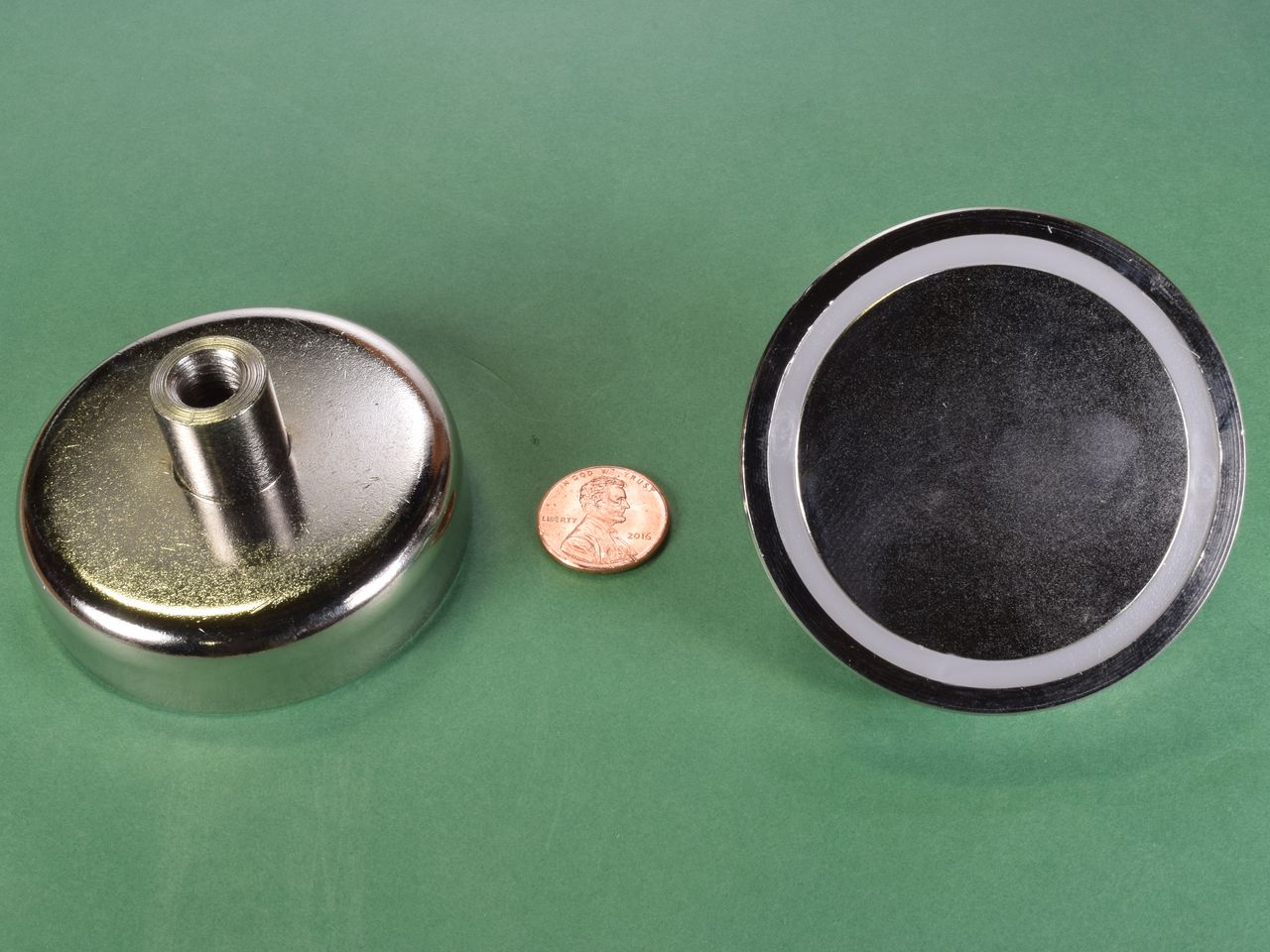

MMS-D-Y8 - Female Stud Mounting Magnet

MMS-D-Y8

MMS-D-Y8

Description
Technical
Downloads

Dimensions:
    Diameter = 2 1/2" (2.50")
    Threaded Female Stud = 3/8"-16 UNC 2B
    Height = 5/8" (0.625")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 12.56 oz. (356.1 g)
Pull Force: 259.1 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $43.29

Quantity:

Qty:

Price ea.	Qty
$43.29	1
$42.33	2
$41.37	3-4
$40.40	5-6
$39.44	7-9
$38.48	10-24
$37.52	25-49
$36.55	50-99
$35.59	100-249
$34.63	250-499
For pricing at higher order quantities, please email us!
