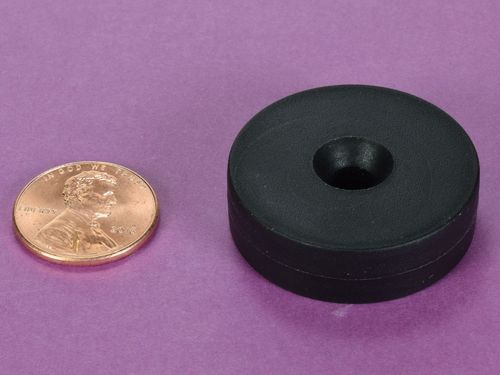

RX436DCSPC-BLK - Neodymium Plastic Coated Countersunk Ring Magnet

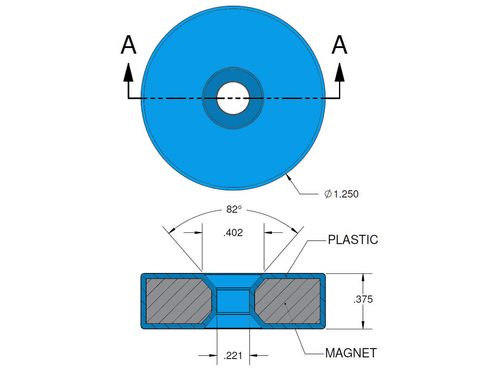

• Dimensions: 1 1/4" od x 0.221" id x 0.402" id x 3/8" thick w/ hole to accept #10 screws
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni Black Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.38 oz. (38.8 g)
• Pull Force, Case 1: 20.49 lbs
• Pull Force, Case 2: 39.87 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The RX436DCSPC builds upon the strengths of our RX034DCSPC. Larger in both diameter and thickness means even more power and holding ability, all wrapped in a rugged, water-proof plastic coating. And since it is double countersunk, it's also reversible. The aquarium enthusiast's dream come true!

See our full line of Countersunk Magnets.


	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
