S6 - Neodymium Sphere Magnet - 3/8 " Dia

• Dimensions: 3/8" diameter
• Tolerances: ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: NiCuNi (Nickel)
• Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
• Weight: 0.12 oz (3.39 g)
• Pull Force, Case 1: 3.69 lbs
• Pull Force, Case 2: 4.39 lbs
• Surface Field: 8815 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

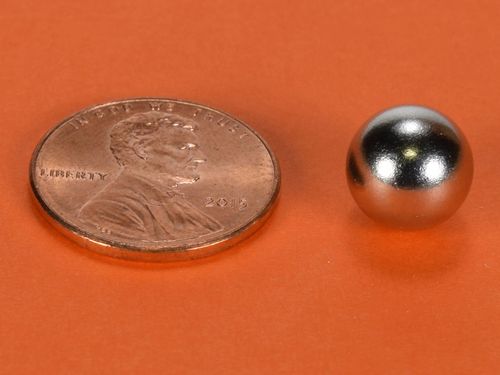

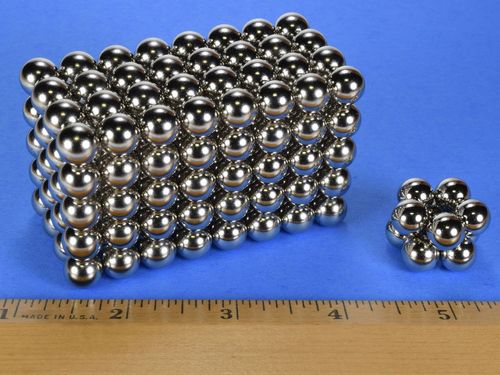

These sphere-shaped magnets are 3/8" in diameter. They aren't so strong as to be hard to handle and painful if they pinch, but are still amazingly strong.

This size is also available with Black Nickel plating as part number S6B and with Gold plating as part number S6G.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
